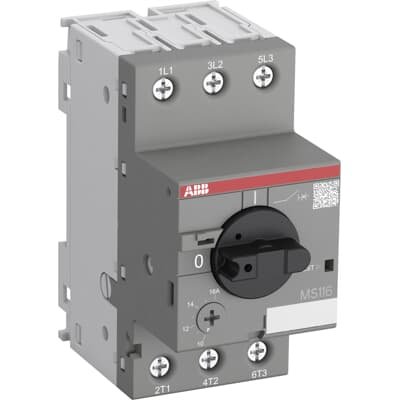

ABB 1SAM250000R1011 Manual Motor Starter
ABB 1SAM250000R1011 Manual Motor Starter
Product Description :
- A manual motor starter is an electrical device that provides a convenient and manual means of starting and stopping an electric motor. It incorporates a switch and overload protection, combining the functions of a motor starter and a circuit breaker. Manual motor starters are commonly used in various applications where motors need to be controlled and protected against overloads.
Product Specification:
Rated Instantaneous Short-Circuit Current Setting (Ii):240 A
 Setting Range: 10 … 16 A
Rated Operational Power AC-3 (Pe): (400 V) Three Phase 7.5 kW
Rated Operational Power AC-3e (Pe): (400 V) Three Phase 7.5 kW
Rated Operational Voltage: Main Circuit 690 V AC
Rated Operational Current (Ie):16 A
Rated Operational Current AC-3 (Ie):16 A
Rated Operational Current AC-3e (Ie):16 A
Rated Frequency (f):Main Circuit 50 Hz/Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):Main Circuit 6 kV
Rated Insulation Voltage (Ui):690 V
