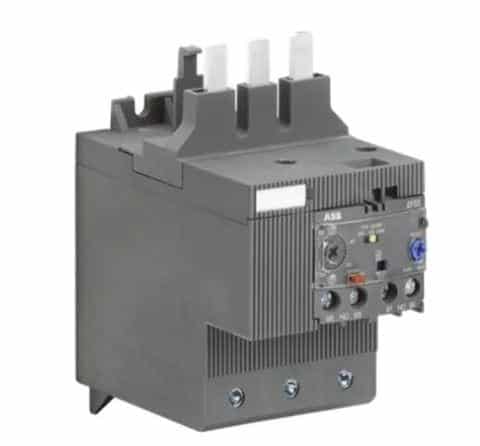

ABB 1SAX341001R1101 Electronic Overload Relay
ABB 1SAX341001R1101 Electronic Overload Relay
Product Description:
- An electronic overload relay is a modern version of the traditional thermal overload relay.
- Unlike thermal overload relays that use a bimetallic strip to detect overcurrent conditions, an electronic overload relay uses digital and analog circuitry to monitor the current and other parameters
- This relay offers more precision and flexibility in overload protection for motors and other electrical equipment.
- An electronic overload relay is an electrical device design to protect electric motors from over currents that could lead to damage or overheating.
- Electronic overload relays use electronic components, such as current transformers and semiconductor devices, to accurately sense the current flowing through the motor.
Product Specifications:
| Attribute | Value |
| FLC Motor Rating | 100 A |
| Contact Current Rating | 6 A |
| Control Voltage | 690 Vac |
| Range | AF Range |
| Pole Configuration | 3P |
| Series | EF96 |
| Mounting Style | Under Contactor Mount |
| Normal State Configuration | 1NO + 1NC |
| Terminal Type | Flat |
| Reset Method | Automatic, Manual |
| Width | 105.2mm |
| Number Of Auxiliary Contacts | 2 |
| Depth | 105.2mm |
| Length | 70mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +70 °C |
| Contact Voltage Rating | 600 V ac/dc |
| Supply Voltage | 1000 V ac |
