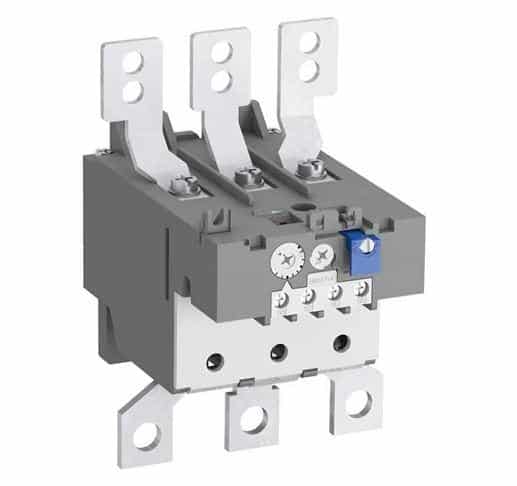

ABB 1SAZ421201R1004 Thermal Overload Relay

Inquire for shipping charges

Brand: ABB
P/N: 1SAZ421201R1004

Categories: ,

ABB 1SAZ421201R1004 Thermal Overload Relay

Product Description:

  • A thermal overload relay is a protective device used in electrical circuits to prevent motors from overheating due to excessive current flow.
  • It operates based on the principle of heat generation caused by current flowing through a conductor.
  • The relay continuously monitors the motor’s current and disconnects the power supply if the current exceeds a set threshold for a specific period, protecting the motor from damage.
  • ABB 1SAZ421201R1004 Thermal Overload Relay
  • The TA200DU-150 thermal overload relay is an economic electromechanical protection device for the main circuit.
  • It offers reliable and fast protection for motors in the event of overload or phase failure
  • Brand: ABB
  • Part Number: 1SAZ421201R1004
  • Dimensions: 12.6×15.1×1.4 cm
  • Power Loss: Rated Operating Conditions per Pole: 3.2-6.0 W
Operating Voltage

Auxiliary Circuit: 440 V DC

Auxiliary Circuit: 500 V AC

Main Circuit: 690 V AC

Frequency

Auxiliary Circuit: 50-60 Hz

Auxiliary Circuit: DC

Number of Poles

3 Pole

Auxillary Contact

Auxiliary Contacts NC: 1

Auxiliary Contacts NO: 1

Item Code

TA200DU-150

Operating Current

150 A

Insulated Voltage 690 V
Brand ABB
Part Number

1SAZ421201R1004

Dimensions

12.6×15.1×1.4 cm

Weight

760 g

Suitable For

A145

A185

AF145

AF185

AF190

AF205

Standards

IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

UL 60947-1

UL 60947-4-1

Power Loss

Rated Operating Conditions per Pole: 3.2-6.0 W

Insulated Voltage

690 V

Country of origin

India

EAN

4013614286049

Operating Voltage

Auxiliary Circuit: 440 V DC

Auxiliary Circuit: 500 V AC

Main Circuit: 690 V AC

Frequency

Auxiliary Circuit: 50-60 Hz

Auxiliary Circuit: DC

Number of Poles

3 Pole

Auxillary Contact

Auxiliary Contacts NC: 1

Auxiliary Contacts NO: 1

Item Code

TA200DU-150

Operating Current

150 A
