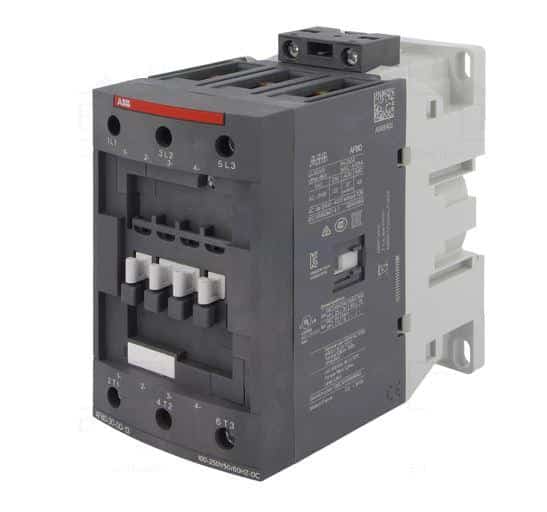

ABB 1SBL397001R1300 Contactor
ABB 1SBL397001R1300 Contactor
Product Description:
- A contactor is an electrical device used to switch an electrical circuit on or off.
- It’s commonly used in industrial and commercial applications to control motors, lighting, heating, and other high-power systems.
- Contactors are usually controlled by low voltage (such as 24V or 110V), but they can switch high voltage and high current circuits.
- It is an electrical switching device that is commonly use in industrial and commercial applications to control the flow of electrical power to high-current loads.
- These typically have at least one set of normally open (NO) contacts and sometimes one or more sets of normally closed (NC) contacts.
- They are available with various coil voltage options to match the voltage supply of the control circuit.
- Common coil voltages include 24V, 120V, and 240V AC or DC, depending on the application.
- They are designed to handle high-current loads, making them suitable for controlling devices with motors or other power-hungry components.
- They are available in various sizes and ratings to accommodate different load requirements.
Product Specification:
|
Manufacturer
|
ABB | |
|
Type of contactor
|
3-pole | |
|
Contacts configuration |
NO x3 | |
|
Control voltage
|
100…250V AC | |
|
Control voltage
|
100…250V DC | |
|
Max. operating current
|
80A | |
|
Mounting
|
for DIN rail mounting, on panel | |
|
Contactor series
|
AF | |
|
Leads
|
screw terminals | |
|
Operating temperature
|
-25…60°C | |
|
Width
|
55mm | |
|
Height
|
125.5mm |
