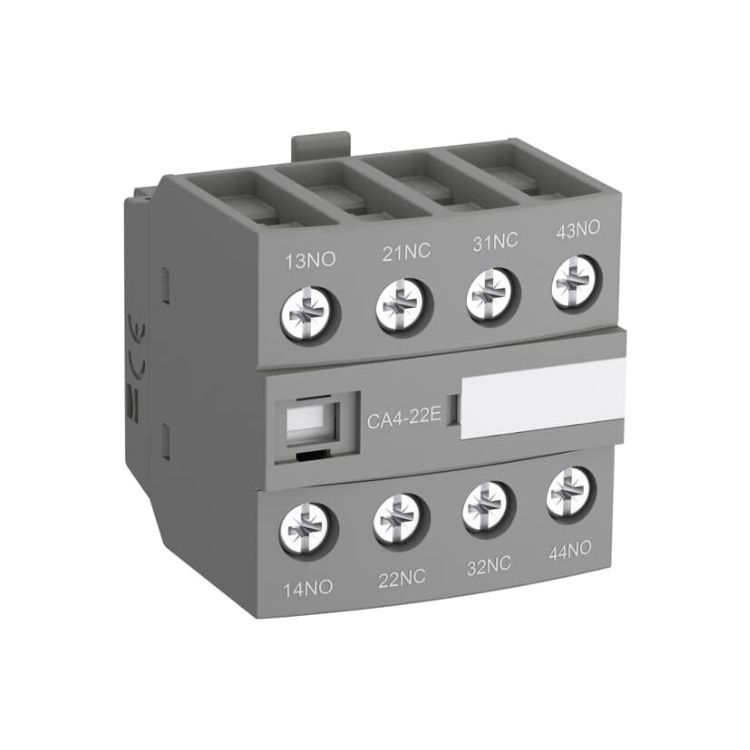

ABB 1SBN010140R1240 Contact Block

ABB 1SBN010140R1240 Contact Block

ABB 1SBN010140R1240 Contact Block

Product Description:

• A contact block is an electrical component commonly used in electrical control systems, particularly in the construction of push-button switches and similar devices.
• It is designed to make or break electrical contacts within a circuit when activated by an external force, such as pressing a button or actuating a switch.
• The ABB 1SBN010140R1240 Contact Block is a high-quality electrical component designed for reliable switching, control circuit operation, and industrial automation applications. This genuine ABB 1SBN010140R1240 Contact Block ensures stable electrical contact, efficient signal transmission, and long-lasting performance in demanding industrial environments.
• Manufactured by ABB, a global leader in electrical solutions, the ABB 1SBN010140R1240 Contact Block is built using high-grade materials that provide excellent durability, electrical conductivity, and resistance to wear. It is engineered for seamless integration with control panels, contactors, motor starters, and automation systems, ensuring consistent performance and operational safety.

Product Specification:

• Connecting Capacity Auxiliary Circuit:

  Flexible with Ferrule 1/2x 0.75 … 2.5 mm²
  Flexible with Insulated Ferrule 2x 0.75 … 1.5 mm²
  Flexible with Insulated Ferrule 1x 0.75 … 2.5 mm²
  Rigid 1/2x 1 … 2.5 mm²

• Maximum Electrical Switching Frequency:

  (AC-15) 1200 cycles per hour
  (DC-13) 900 cycles per hour

• Maximum Mechanical Switching Frequency:

  3600 cycles per hour

• Mounted Auxiliary Contacts:

  4 NO, 0 NC

• Mounting Type:

  Front mounting

• Number of Auxiliary Contacts NC:

  0

• Number of Auxiliary Contacts NO:

  4

• Rated Frequency (f):

  Auxiliary Circuit 50 / 60 Hz

• Rated Impulse Withstand Voltage (U_imp):

  6 kV

• Rated Insulation Voltage (U_i):

  acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
  acc. to UL/CSA 600 V

• Rated Operational Current AC-15 (I_e):

  (500 V) 2 A
  (690 V) 2 A
  (24 / 127 V) 6 A
  (220 / 240 V) 4 A
  (400 / 440 V) 3 A

• Product Net Width:

  43 mm

• Product Net Depth / Length:

  39.5 mm

• Product Net Height:

  43 mm
