ABB 1SBN030110R1000 Mechanical and Electrical Interlock Unit
ABB 1SBN030110R1000 Mechanical and Electrical Interlock Unit
Product Description :
- These interlocks are crucial for maintaining safety, preventing accidents, and ensuring that systems operate within specified parameters.

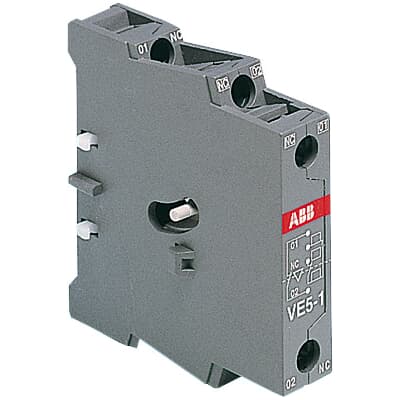

- The ABB 1SBN030110R1000 Mechanical and Electrical Interlock Unit is a high-performance safety device designed to ensure reliable mechanical and electrical interlocking in industrial switchgear, motor control centers, and electrical distribution systems. This interlock unit integrates mechanical locking and electrical control, preventing unsafe operations, accidental energizing, and ensuring operator safety in low-voltage and medium-voltage applications.
- Engineered by ABB, a global leader in electrical equipment, the 1SBN030110R1000 interlock unit offers durable construction, precision engineering, and long-lasting reliability, making it ideal for industrial automation, electrical panels, and control systems. The mechanical component ensures secure door and handle locking, while the electrical interlock allows seamless integration with control circuits to prevent unintended power flow.
Product Specification :
| Mounting on Contactors | A 9 …A 40, N |
|---|---|
| Mounted Aux Contacts | 0 NO, 2 NC |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, q = 40 °C 16 ampere |
| Terminal Type | Screw Terminals |
| Rated Operational Voltage | Auxiliary Circuit 690 volt |
| Rated Operational Current DC-13 (Ie) | (125 V) 0.55 ampere, (24 V) 6 ampere, (250 V) 0.3 ampere, (48 V) 2.8 ampere, (72 V) 1 ampere |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 4 ampere, (24 / 127 V) 6 ampere, (380 / 440 V) 3 ampere, (500 V) 2 ampere, (690 V) 2 ampere |
| Rated Breaking Capacity acc. to IEC 60947-5-1 | 10 x Ie AC-15 |
| Rated Frequency (f) | Supply Circuit 50 60 hertz |
| Package Width | 100 millimetre |
| Package Length | 105.5 millimetre |
| Package Height | 26 millimetre |
| Invoice Description | VE5-1 Mechanical and Electrical Interlock Unit |
| Product Range | AL Contactors |
| Package Gross Weight | 0.076 kilogram |
| Extended Product Type | VE5-1 |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 volt, acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 volt |
