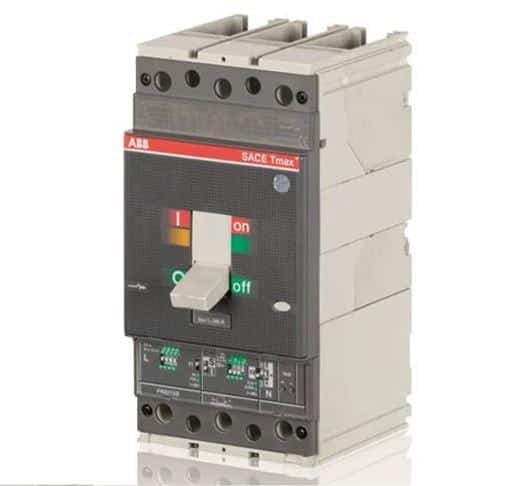

ABB 1SDA054050R1 Circuit Breaker
ABB 1SDA054050R1 Circuit Breaker
Product Specification:
- Brand: ABB
- Part Number: 1SDA054050R1
- Adjustment range short-term delayed short-circuit release (A): 250 – 2500
- Rated permanent current Iu (A): 250
- Adjustment range undelayed short-circuit release (A): 250 – 2500
- Overload release current setting (A): 100 – 250
- Number of poles: 3
- Rated voltage (V): 690 – 690
- Position of connection for main current circuit: Front side
- Type of control element: Toggle
- Degree of protection (IP): IP20
- Device construction: Built-in device fixed built-in technique
-
Type of electrical connection of main circuit: Bolt connection
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA): 70
Stock and logistics
Height: 0.23Â m
Width: 0.25Â m
Depth:0.29Â m
