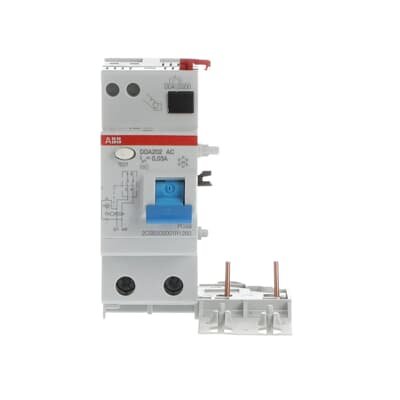

ABB 2CSB202001R1250 Residual Current Circuit Breaker
ABB 2CSB202001R1250 Residual Current Circuit Breaker
Product Description :
- It is a safety device used in electrical systems to prevent electric shock or fire caused by a leakage current. It detects any imbalance between the live (phase) and neutral wires, which could occur if there is a fault in the wiring or if someone comes into contact with a live part.
- It helps protect against electric shock, especially in areas with high moisture or wet conditions like bathrooms or kitchens.
Product Specification :
Short-Circuit Current Rating (SCCR): 0.03 … 0.03 A
Rated Voltage (Ur): 230/400 V
Rated Operational Voltage: 230 V
Rated Insulation Voltage (Ui): 500 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Rated Current (In): 25 A
Rated Residual Current: 30 mA
Rated Frequency (f): 50 … 60 Hz
Power Loss: 2 W
Rated Voltage (Ur): 230/400 V
Rated Operational Voltage: 230 V
Rated Insulation Voltage (Ui): 500 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Rated Current (In): 25 A
Rated Residual Current: 30 mA
Rated Frequency (f): 50 … 60 Hz
Power Loss: 2 W
