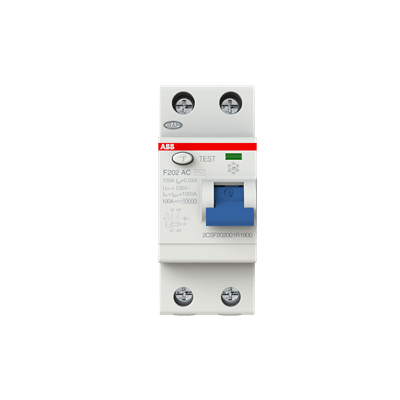

ABB 2CSF202001R1900 Residual Current Circuit Breaker
ABB 2CSF202001R1900 Residual Current Circuit Breaker
Product Description :
- It is a safety device used in electrical systems to prevent electric shock or fire caused by a leakage current. It detects any imbalance between the live (phase) and neutral wires, which could occur if there is a fault in the wiring or if someone comes into contact with a live part.
- It helps protect against electric shock, especially in areas with high moisture or wet conditions like bathrooms or kitchens.
Product Specification :
Type of Residual Current: Type AC
Rated Voltage (Ur): 230 V
Rated Operational Voltage: 230 V
Rated Insulation Voltage (Ui): 500 V
Test Voltage (Ut): 170-254 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Input Voltage Type: AC
Rated Current (In): 100 A
Rated Residual Current: 30 mA
Rated Conditional Short-Circuit Current (Inc): 10 kA
Maximum Surge Current: 0.25 kA
Leakage Current Type: AC
Frequency (f): 50/60 Hz
Rated Frequency (f):50 … 60 Hz
