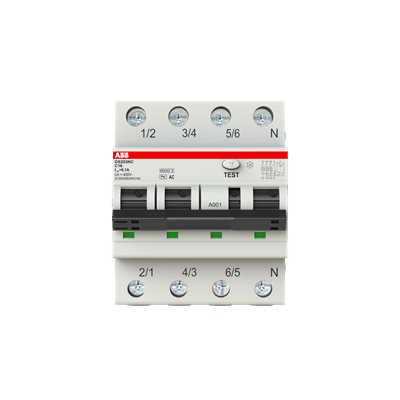

ABB 2CSR256040R2164 Residual Current Circuit Breaker
ABB 2CSR256040R2164 Residual Current Circuit Breaker
Product Description :
- It is a safety device used in electrical systems to prevent electric shock or fire caused by a leakage current. It detects any imbalance between the live (phase) and neutral wires, which could occur if there is a fault in the wiring or if someone comes into contact with a live part.
- It helps protect against electric shock, especially in areas with high moisture or wet conditions like bathrooms or kitchens.
Product Specification :
Rated impulse voltage (U imp ): 4 kV
Input voltage type: AC
Rated current (I n ): 16 A
Rated earth fault current: 100 mA
Rated short-circuit breaking capacity: 6 kA
Rated breaking capacity (I cu ): 10 kA
Conditional short-circuit current (I nc ): 10 kA
Short-circuit breaking capacity, %Icu [%] (I cs ): 6 kA
Maximum Surge Current: 0.25 kA
Rated frequency (f): 50 … 60 Hz
Power loss: 10 in
Power supply connection: Arbitrary
Energy restriction class: 3
Input voltage type: AC
Rated current (I n ): 16 A
Rated earth fault current: 100 mA
Rated short-circuit breaking capacity: 6 kA
Rated breaking capacity (I cu ): 10 kA
Conditional short-circuit current (I nc ): 10 kA
Short-circuit breaking capacity, %Icu [%] (I cs ): 6 kA
Maximum Surge Current: 0.25 kA
Rated frequency (f): 50 … 60 Hz
Power loss: 10 in
Power supply connection: Arbitrary
Energy restriction class: 3
