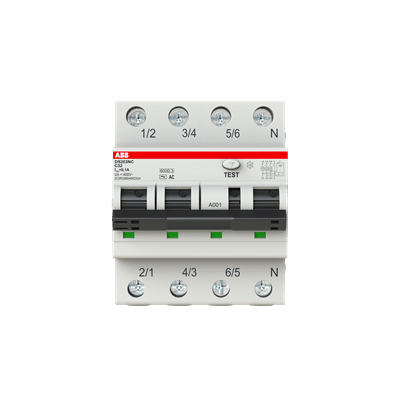

ABB 2CSR256040R2324 Residual Current Circuit Breaker
ABB 2CSR256040R2324 Residual Current Circuit Breaker
Product Description :
- It is a safety device used in electrical systems to prevent electric shock or fire caused by a leakage current. It detects any imbalance between the live (phase) and neutral wires, which could occur if there is a fault in the wiring or if someone comes into contact with a live part.
- It helps protect against electric shock, especially in areas with high moisture or wet conditions like bathrooms or kitchens.
Product Specification :
Input voltage type: B.C
Nominal current (I n ): 32 A
Rated Residual Current: 100 mA
Rated Short-Circuit Capacity: 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (I cu ): 10 kA
Rated Conditional Short-Circuit Current (I nc ): 10 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (I cs ): 6 kA
Maximum Surge Current: 0.25 kA
Nominal frequency (f): 50 … 60 Hz
Power Loss: 15.1 W
Power Supply Connection:Arbitrary
Nominal current (I n ): 32 A
Rated Residual Current: 100 mA
Rated Short-Circuit Capacity: 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (I cu ): 10 kA
Rated Conditional Short-Circuit Current (I nc ): 10 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (I cs ): 6 kA
Maximum Surge Current: 0.25 kA
Nominal frequency (f): 50 … 60 Hz
Power Loss: 15.1 W
Power Supply Connection:Arbitrary
