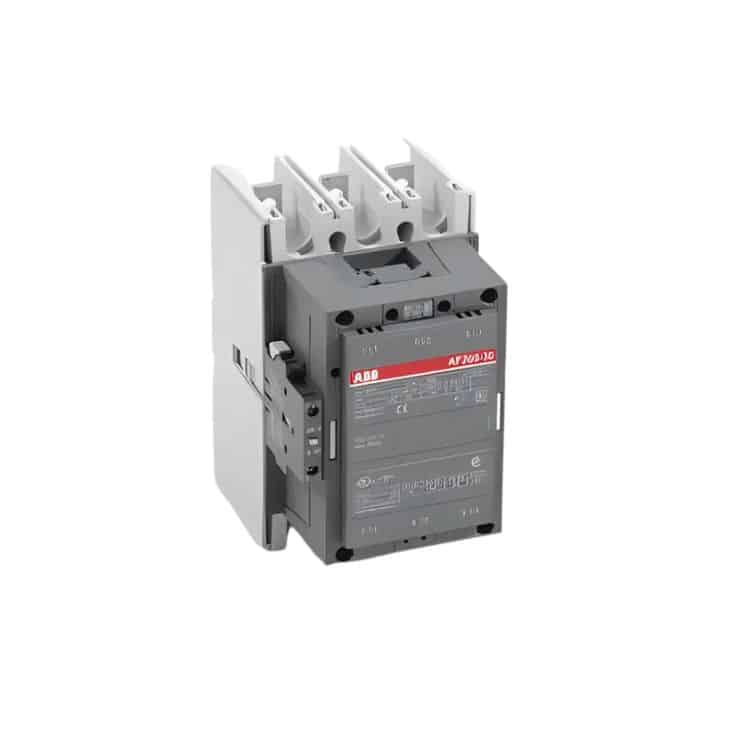

ABB AF260-30-11-70 Contactor
ABB AF260-30-11-70 Contactor
Product Description:
- A contactor is an electrical device used to switch an electrical circuit on or off.
- It’s commonly used in industrial and commercial applications to control motors, lighting, heating, and other high-power systems.
- Contactors are usually controlled by low voltage (such as 24V or 110V), but they can switch high voltage and high current circuits.
- It is an electrical switching device that is commonly use in industrial and commercial applications to control the flow of electrical power to high-current loads.
- These typically have at least one set of normally open (NO) contacts and sometimes one or more sets of normally closed (NC) contacts.
- They are available with various coil voltage options to match the voltage supply of the control circuit.
- Common coil voltages include 24V, 120V, and 240V AC or DC, depending on the application.
- They are designed to handle high-current loads, making them suitable for controlling devices with motors or other power-hungry components.
- They are available in various sizes and ratings to accommodate different load requirements.
Product Specification:
- Brand: ABB
- Part Number: AF260301170
- Catalog Description: AF260-30-11 100-250V 50/60Hz / 100-250V DC Contactor
- Number of Main Contacts NO: 3
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Rated Operational Voltage: Main Circuit 690 V
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 400 A
- Product Net Width: 140Â mm
- Product Net Depth / Length: 180.5Â mm
