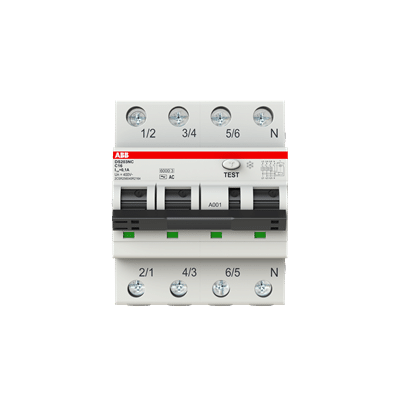

ABB DS203NC-C16-AC100 Circuit Breaker
ABB DS203NC-C16-AC100 Circuit Breaker
Product Description :
- A circuit breaker is a crucial electrical device design to automatically interrupt or break an electrical circuit when it detects excessive current, a short circuit, or other electrical faults. Its primary function is to protect electrical systems, equipment, and devices from damage caused by overcurrent conditions.
Product Specification:
- Voltage type: AC
- Courant nominal (In): 16 A
- Rated Residual Current: 100 mA
- Rated Short-Circuit Capacity: 6 kA
- Assigned ultimate short-circuit breaking capacity (I cu ): 10 kA
- Rated Conditional Short-Circuit Current (Inc): 10 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): 6 kA
- Maximum Surge Current: 0.25 kA
- Assigned frequency (f): 50 … 60 Hz
- Power Loss: 10 in
- Power Supply Connection:Arbitrary
