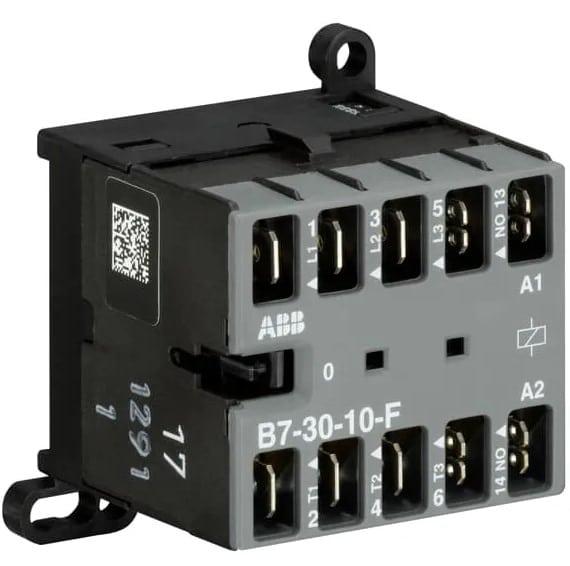

ABB GJL1311003R0101 Mini Contactor
ABB GJL1311003R0101 Mini Contactor
Product Description :
- It is a small-sized electrical device used to switch electrical circuits on and off. It works similarly to a regular contactor but is designed for low-power or smaller electrical loads. Mini contactors are commonly used in applications such as HVAC systems, lighting controls, and small machines, where compact size and reliable operation are essential.
- They are designed to be smaller and more compact than traditional contactors, making them ideal for installations with space constraints.
- They often have multiple contacts (normally open or normally closed), which allow them to control the switching of the connected load.
- A Mini Contactor is a compact, lightweight switching device designed to control small motors, heating elements, lighting circuits, and other electrical loads in confined spaces. Despite its small size, it offers reliable performance, long electrical life, and easy DIN rail mounting—making it ideal for control panels, machinery, and building automation.
Product Specification :
| Number of Main Contacts NO | 3 |
|---|---|
| Compatibility | Mini Contactors |
| Max Electrical Switching Frequency | AC-1 300 cycles per hour |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 ampere |
| Coil Consumption | Average Holding Value 50 Hz 3.5 volt – ampere |
| Terminal Type | Flat-Pin Connections |
| Rated Operational Voltage | Auxiliary Circuit 12 … 240 volt DC |
| Rated Control Circuit Voltage (Uc) | 24V AC |
| Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 | 8 x Ie / AC-3 |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.7 ampere |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 11.3 ampere |
| Rated Operational Current AC-15 (Ie) | (120 V) 4 ampere |
| Rated Operational Current AC-1 (Ie) | (220 / 240 V) 40 °C 20 ampere |
| Rated Making Capacity AC-3 acc. to IEC 60947-4-1 | 10 x Ie / AC-3 |
