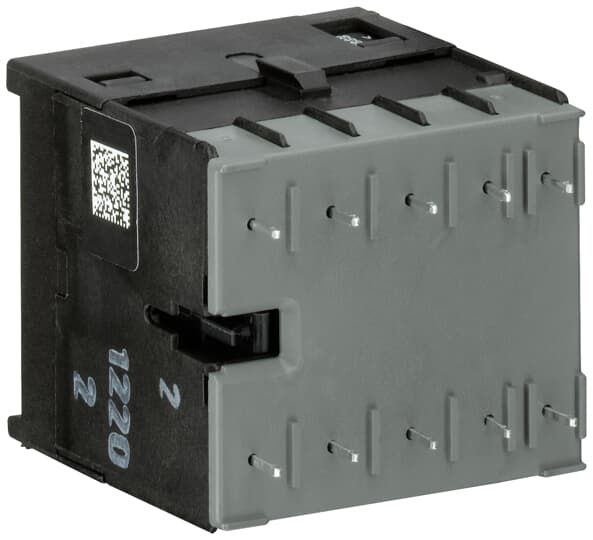

ABB GJL1311009R0101 Mini Contactor
ABB GJL1311009R0101 Mini Contactor
Product Description :
- It is a small-sized electrical device used to switch electrical circuits on and off. It works similarly to a regular contactor but is designed for low-power or smaller electrical loads. Mini contactors are commonly used in applications such as HVAC systems, lighting controls, and small machines, where compact size and reliable operation are essential.
- They are designed to be smaller and more compact than traditional contactors, making them ideal for installations with space constraints.
- They often have multiple contacts (normally open or normally closed), which allow them to control the switching of the connected load.
Product Specification :
| Number of Main Contacts NO | 3 |
|---|---|
| Compatibility | Mini Contactors |
| Max Electrical Switching Frequency | AC-1 300 cycles per hour |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 ampere |
| Coil Consumption | Average Holding Value 50 Hz 3.5 volt – ampere |
| Terminal Type | Flat-Pin Connections |
| Rated Operational Voltage | Auxiliary Circuit 12 … 240 volt DC |
| Rated Control Circuit Voltage (Uc) | 24V AC |
| Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 | 8 x Ie / AC-3 |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.7 ampere |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 11.3 ampere |
| Rated Operational Current AC-15 (Ie) | (120 V) 4 ampere |
| Rated Operational Current AC-1 (Ie) | (220 / 240 V) 40 °C 20 ampere |
| Rated Making Capacity AC-3 acc. to IEC 60947-4-1 | 10 x Ie / AC-3 |
