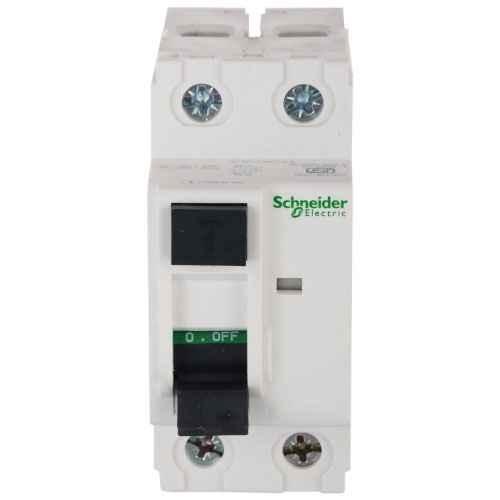

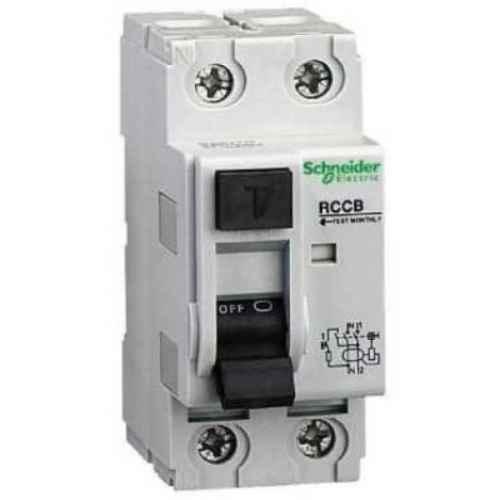

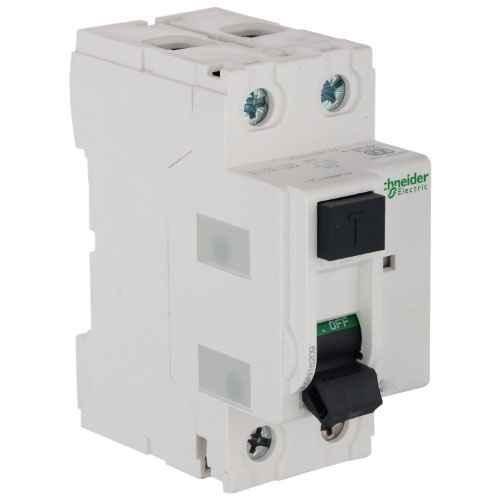

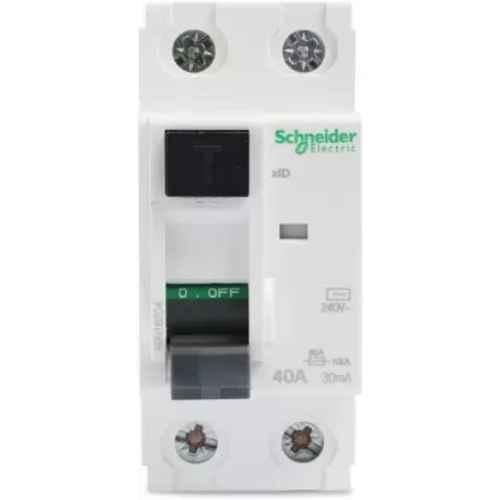

Schneider Electric A9N16204 Acti

Schneider Electric A9N16204 Acti

Schneider Electric A9N16204 Acti

• It is a 2P circuit breaker with 40A In rated current, a sensitivity of 30mA with a AC type protection class. Acti protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is up to 500A .
• The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C.

Product Specification:
