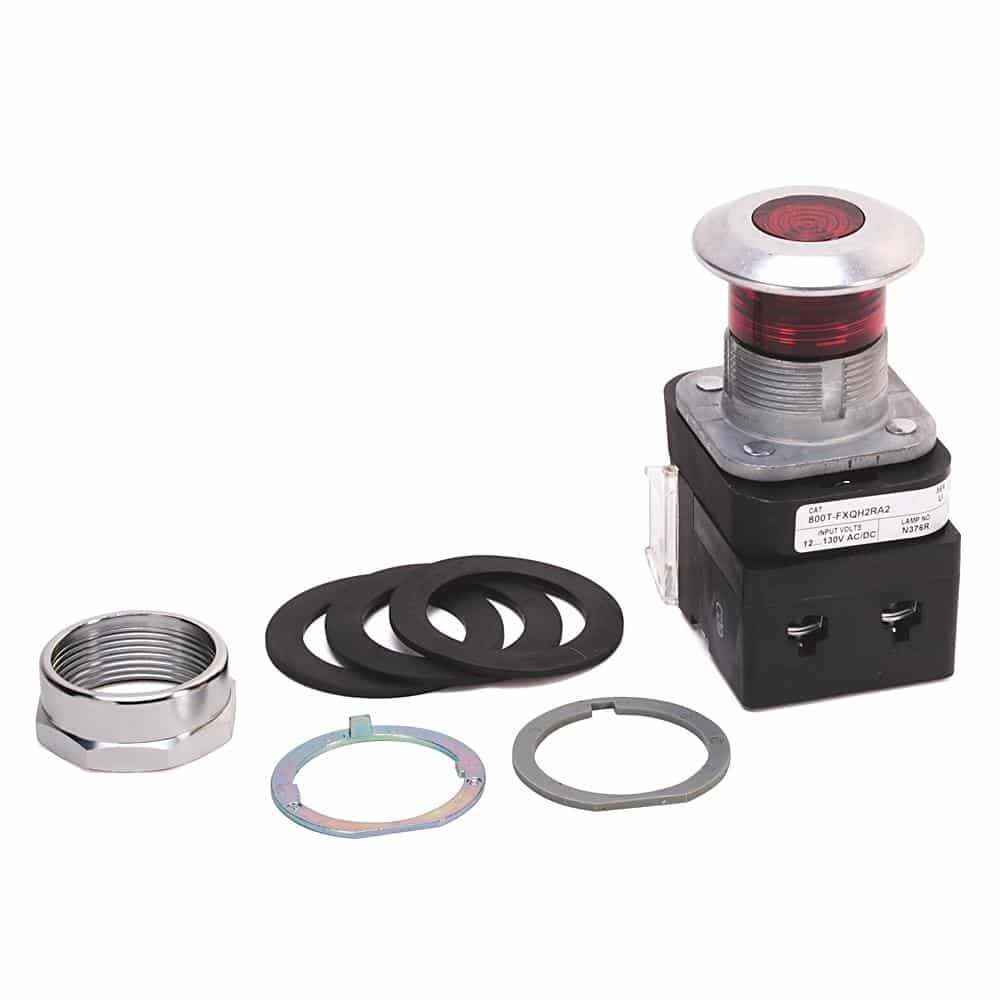

Allen Bradley 800T-FXQH2RA1 Push-Pull Switch
Allen Bradley 800T-FXQH2RA1 Push-Pull Switch
Product Description:
-
The Push-Pull Switch is a robust mechanical switch designed to manually start or stop electrical circuits with a simple push-pull motion. Known for its durability and ease of operation, it is commonly used in safety-critical applications, industrial machinery, vehicles, and electrical panels where quick power disconnection or emergency stop functionality is required.
-
This switch operates by pushing to engage (ON) and pulling to disengage (OFF), or vice versa depending on the configuration. Available in various contact configurations (SPST, DPST, etc.), voltage ratings, and housing types, push-pull switches are suitable for both AC and DC applications. Some models also feature latching, illuminated indicators, or key lockouts for enhanced functionality and security.
- These switches are often design to perform different functions depending on the direction of the applied force. They are commonly use in various applications where bidirectional control is needed. Push/pull switches can be operated by pushing the switch in one direction and pulling it in the opposite direction.
Product Specification:
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | No |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | Red |
| Operator cap/button size | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator cap text/symbol | N/A |
| Illumination module termination wire range | 14 – 18 AWG (x2) |
| Operator function | 2-Position |
| Contact block termination tightening torque | 6 – 8 lb – in / 0.7 – 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator type | Push-Pull Unit |
| Operator special function | Maintained |
| Contact block configuration | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 – 18 AWG (x2) |
| Illumination module termination tightening torque | 6 – 8 lb – in / 0.7 – 0.9 N-m |
