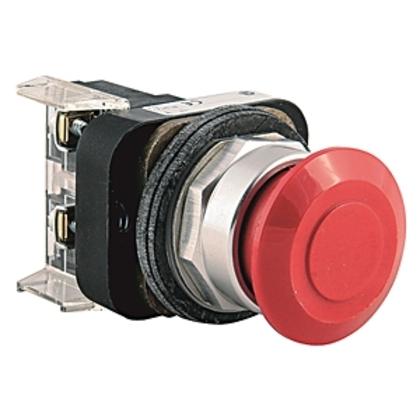

Allen Bradley 800TFX6 Push-Pull Switch
Allen Bradley 800TFX6 Push-Pull Switch
Product Description:
- A push-pull switch is a type of electrical switch that can be activated by both pushing and pulling. The design of push-pull switches allows users to toggle between two positions – one activated by pushing and the other by pulling.
- A Push-Pull Switch is a manually operated electrical switch designed to control the opening or closing of a circuit by pushing or pulling a knob or actuator. These switches are commonly used for applications where simple, intuitive, and rapid activation or deactivation is required—especially in safety-critical or emergency stop functions.
Product Specification :
| Suitable for illumination | No |
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Operator cap type | Mushroom head |
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | No |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | Red |
| Operator cap/button size | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator cap text/symbol | No legend on cap |
| Operator function | 2-position |
| Operator type | Push-Pull Unit |
| Operator special function | Maintained |
| Contact block configuration | No contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Humidity | 50 % |
| Operating temperature | -25 °C |
| Hazardous location rating | No |
| Storage temperature | -40 °C |
