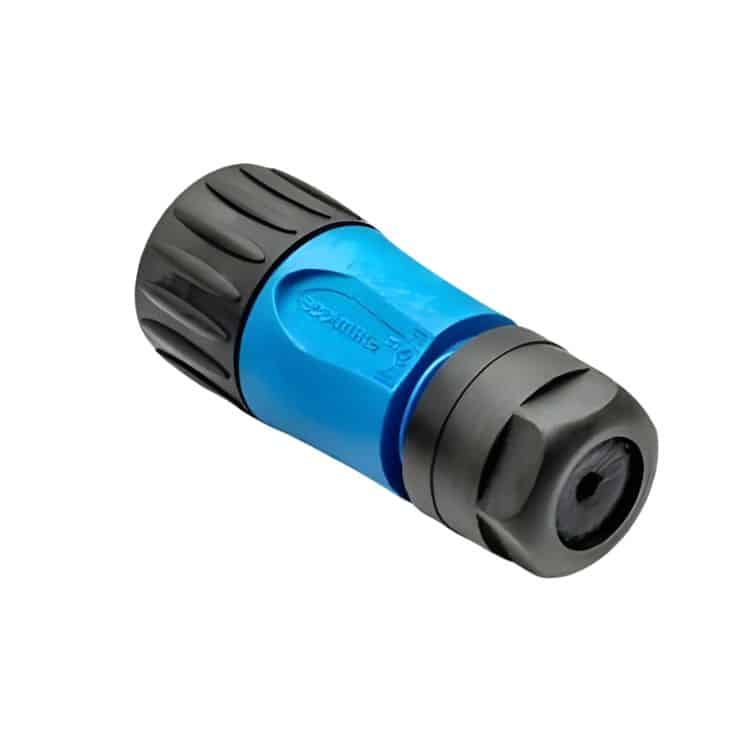

Amphenol C01620D00311010 Circular Connector
Amphenol C01620D00311010 Circular Connector
Product Description:
- A circular connector is a type of electrical connector designed with a round (circular) housing and multiple pins or sockets that allow for secure, reliable electrical connections.
- Circular connectors are a type of electrical connector characterized by their circular shape.
- These connectors are used in a variety of applications and industries, offering reliable and secure connections.
- The circular design provides advantages such as durability, ease of use, and resistance to environmental factors.
- These connectors are widely used in industrial, military, automotive, aerospace, and telecommunications applications due to their durability, versatility, and ability to handle both power and data signals.
Product Specification:
- Number of Contacts : 3 + PE
- Type : Field installable screw termination
- Backshell Color : Blue
- Rated Voltage : 400 V
- Rated Impulse Withstand Voltage : 6000 V
- Pollution Degree : 3
- Installation (overvoltage) Category : III
- Material Group : II
- Current Carrying Capacity : 16 A / + 55 °C
- Insulation Resistance : ≥ 10(8) Ω
- Contact Resistance : ≤ 5 mΩ
- Climatic Category : 40 / 100 / 56
- Operating Temperature : -40°C to +100°C
- Degree of Protection : IP65/67
- Insertion and Withdrawal Force : < 15 N
- Mechanical Operation : > 500 Mating Cycles
- Housing Material : PA 6.6 / PA 6
- Dielectric Material : PA 6.6 / PA 6
- Gasket Material : Neoprene
- Material Lace for Protective Cap : TPE
- Contact Plating : Silver
- Termination Technique : Screw
- Wire Gauge / AWG: 0.75 – 2.5 mm² / AWG 18-14
- Flammability : V0
- Locking System : Round Thread
- Cable Diameter : 6-10mm
