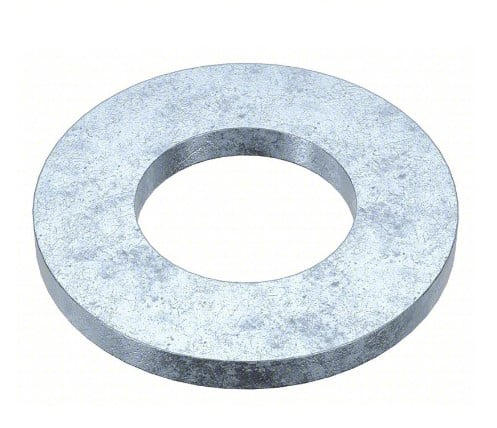

Approved Vendor 6EY63 Flat Washer
Approved Vendor 6EY63 Flat Washer
It is a thin, flat, circular metal (or sometimes plastic) disk with a central hole. It is used in conjunction with a threaded fastener, such as a bolt or a nut, to distribute the load of the fastener and provide a smooth bearing surface under the head of the fastener or between the fastener and the surface being fastened.
Product Specification:
- Brand: APPROVED VENDOR
- Color: Silver
- Dimensional Standards: DIN 125-1A
- Finish: Zinc Plated
- Flat Washer Type: Standard
- For Screw Size: M8
- Inside Diameter: 8.4 mm
- Inside Diameter Tolerance: 0.331-0.339
- Maximum Temperature: 350 °C
- Maximum Thickness: 1.6 mm
- Minimum Temperature: -58 °C
- Minimum Thickness: 1.6 mm
- Outside Diameter: 16 mm
- Outside Diameter Tolerance: 0.613-0.63
