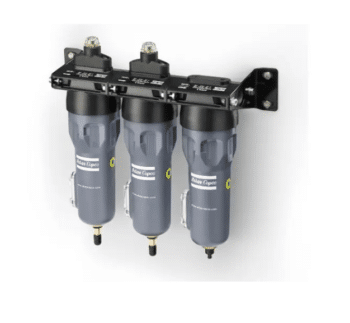

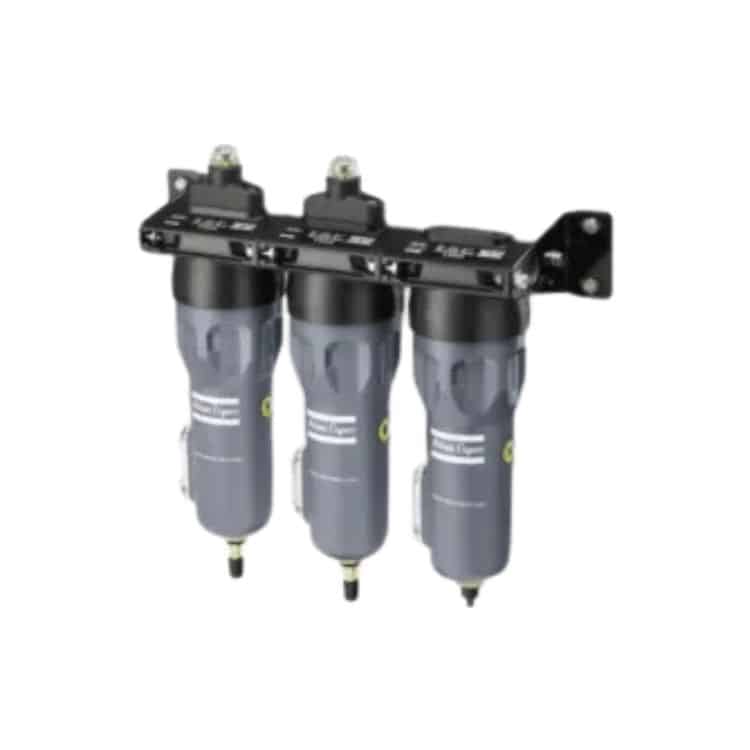

Atlas Copco 8102372007 Compressed Air Filter
Atlas Copco 8102372007 Compressed Air Filter
Product Description :
- It is a device used to remove contaminants such as dust, moisture, oil, and other particles from compressed air before it reaches its point of use. Filters play a crucial role in maintaining the quality of compressed air and protecting downstream equipment, such as pneumatic tools, machinery, and instrumentation, from damage and performance issues caused by these contaminants.
- The heart of the filter, typically made from materials like pleated paper, mesh, or sintered metal, which physically traps contaminants.
- A Compressed Air Filter is a vital component in air systems designed to remove contaminants such as dust, oil, water, and other impurities from compressed air before it reaches downstream equipment. By delivering clean, dry air, it ensures reliable system performance, protects sensitive tools, and extends the service life of machinery.
Product Specification :
| Flanged connection | G 3/4″ |
| inPASS | No |
| Maximum air inlet temperature | 50 °C |
| Weight | 2 kg |
| Compressed air outlet connections | 3/4″ |
| Maximum ambient temperature | 50 °C |
| Maximum compressed air inlet pressure | 16 bar(g) |
| Minimum ambient temperature | 1 °C |
| Nominal volume flow at filter inlet (2) | 45 l/s |
| Qualtity class of air at outlet of filter | 2:-:3 |
| Air inlet temperature (°C) | 20 °C |
| Compressed air inlet effective pressure (bar(g)) | 7 bar(g) |
| Cooling medium inlet temperature (°C) | 20 °C |
| Outlet oil aerosol concentration (mg/m³) | 0.1 mg/m³ |
| Number of filter elements | 1 |
