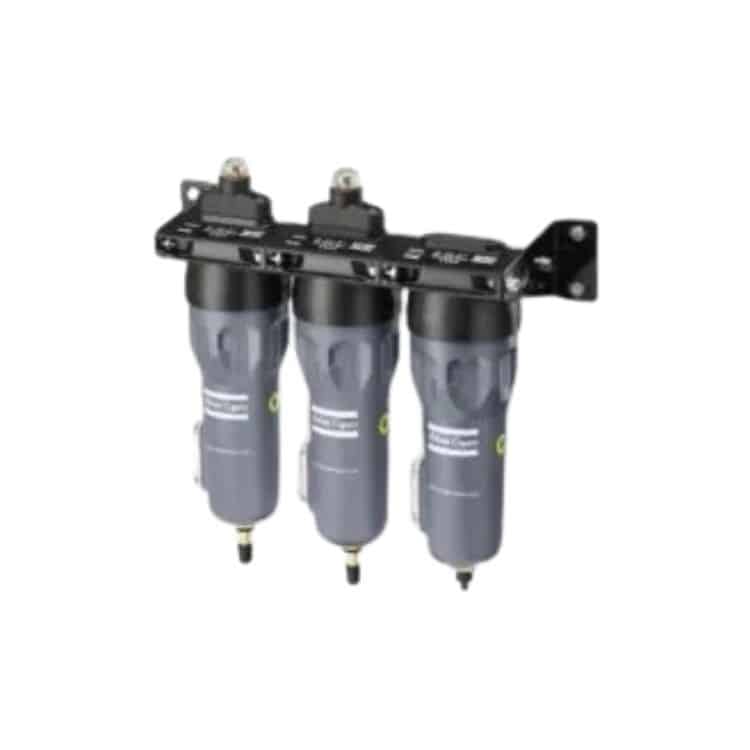

Atlas Copco 8102372313 Filter Assembly
Atlas Copco 8102372313 Filter Assembly
Product Description:
- A filter assembly is a complete system designed to filter contaminants from fluids or air within various applications, such as automotive engines, HVAC systems, industrial machinery, and more.
- The assembly typically includes the filter element itself along with other components necessary to house and secure the filter, and direct the flow of fluid or air through the filter
- A filter assembly refers to a unit or system that includes one or more filters along with the necessary components for their installation and operation.
- Filters are used to remove contaminants from liquids, gases, or air, and a filter assembly is designed to house, support, and integrate these filters into a particular system or application.
- Filter assemblies include one or more filters designed to capture and remove particles, impurities, or undesired substances from the fluid or gas passing through them.
- The type of filter depends on the specific application, and common types include air filters, water filters, oil filters, and more.
Product Specification :
| Flanged connection | G 1 1/2″ |
| inPASS | No |
| Maximum air inlet temperature | 50 °C |
| Weight | 5 kg |
| Compressed air outlet connections | 1 1/2″ |
| Maximum ambient temperature | 50 °C |
| Maximum compressed air inlet pressure | 16 bar(g) |
| Minimum ambient temperature | 1 °C |
| Nominal volume flow at filter inlet (2) | 145 l/s |
| Qualtity class of air at outlet of filter | 1:-:2 |
| Air inlet temperature (°C) | 20 °C |
