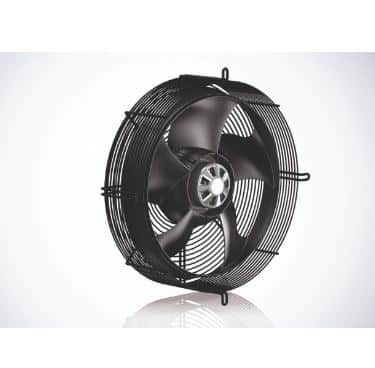

Danfoss S3G500AE3301 Axial Fan
Danfoss S3G500AE3301 Axial Fan
- An axial fan is a type of mechanical fan commonly used to move air or gas parallel to the fan’s axis of rotation. These fans are characterized by the direction of airflow, which is primarily linear or axial, as opposed to the radial airflow produced by centrifugal fans. Axial fans are widely employed in various applications, including ventilation, cooling, and air circulation.
Product Specification:
Size : 500 mm
Surface of rotor: Cast in PA plastic
Material of electronics housing : Die-cast aluminium, coated in black
Material of blades: Press-fitted sheet steel blank, sprayed with PP plastic
Material of guard grille : Steel, phosphated and coated in black plastic
Number of blades : 5
Direction of rotation: “V”
Type of protection : IP 54
Insulation class : “B”
Humidity class : F4-1
Max. permissible ambient motor temp. (transp./ storage): +80 °C
Min. permissible ambient motor temp. (transp./storage): -40 °C
Condensate discharge holes : Rotor-side
Operation mode: S1
Motor bearing : Ball bearing
