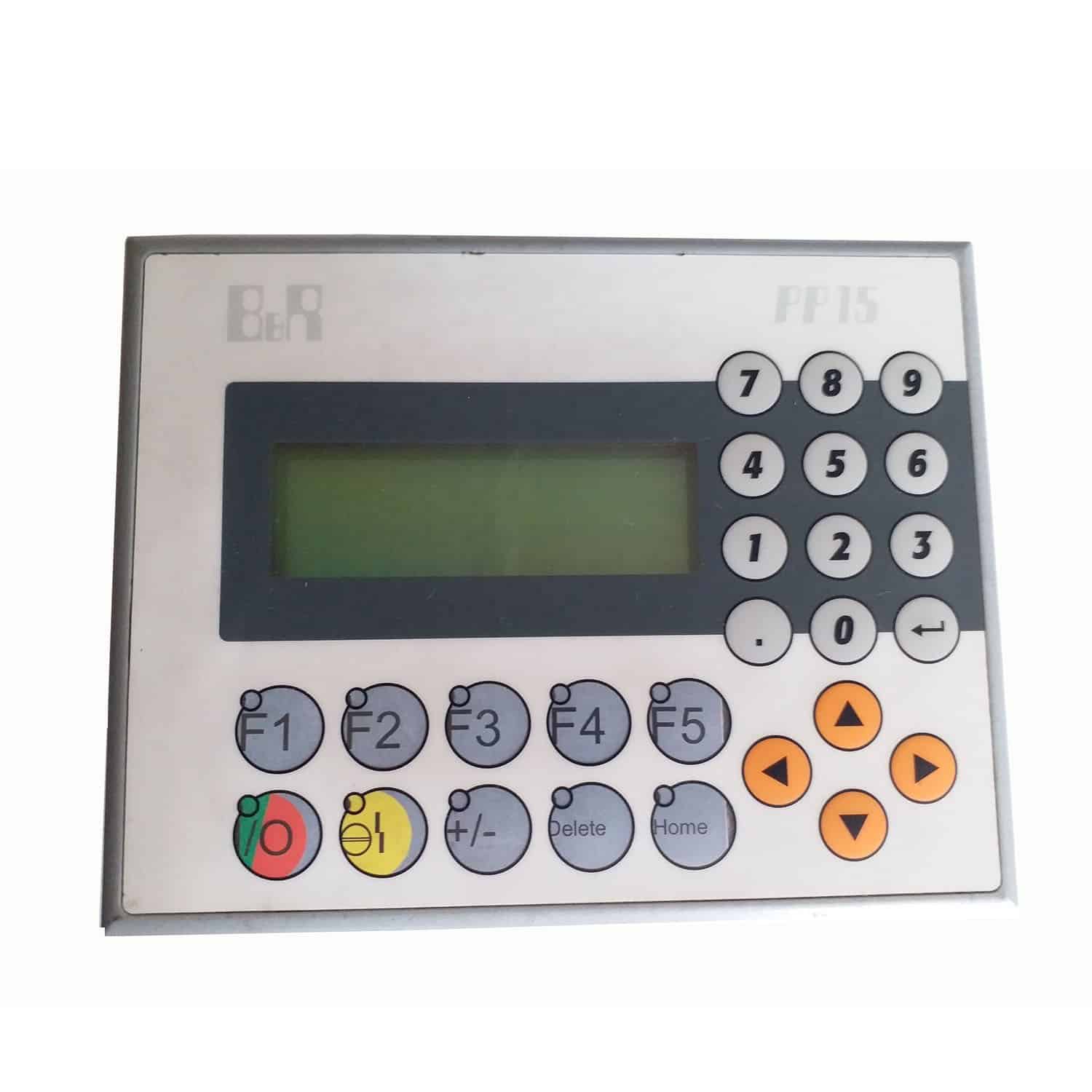

B and R 4PP015E42001 Power Panel
The B and R 4PP015E42001 Power Panel is a key component in modern electrical systems.
B and R 4PP015E42001 Power Panel
When considering electrical solutions, the B and R 4PP015E42001 Power Panel stands out for its durability and efficiency.
B and R 4PP015E42001 Power Panel: A Comprehensive Overview
- It refers to an electrical distribution panel or a control panel that manages and distributes electrical power within a building, facility, or industrial setting.
- The B and R 4PP015E42001 Power Panel is designed for optimal performance in various environments.
- The primary function of a power panel is to distribute electrical power from a main source (such as a utility line or a generator) to various circuits and electrical loads throughout a building or facility.
- With the B and R 4PP015E42001 Power Panel, users can expect enhanced safety features.
- They include circuit breakers or fuses that protect electrical circuits from overloads and short circuits, thereby ensuring safety and preventing damage to electrical equipment.
- The B and R 4PP015E42001 Power Panel offers comprehensive solutions for power management.
- It is integral for managing electrical power distribution, ensuring safety, and supporting efficient operations across various applications and environments.
- Investing in a B and R 4PP015E42001 Power Panel guarantees long-term reliability.
-
A Power Panel is a vital electrical component used to distribute and control electrical power within industrial, commercial, and residential systems. It serves as the central hub for managing the flow of electricity to various circuits, ensuring safe and efficient operation of connected equipment and machinery.
Understanding the importance of the B and R 4PP015E42001 Power Panel is essential for efficient energy management.
-
Constructed with durable enclosures, circuit breakers, relays, and switches, the power panel is designed to protect electrical systems from overloads, short circuits, and faults. It also provides easy access for monitoring, maintenance, and system upgrades.
The B and R 4PP015E42001 Power Panel ensures that power distribution is both safe and reliable.
Product Specification :
Why Choose B and R 4PP015E42001 Power Panel?
General information
| Battery | |
| Type | Renata 950 mAh |
| Variant | Lithium ion |
| Status indicators | |
| Other | I/O function per channel, status |
| Diagnostics | |
| I/O function | Yes, using LEDs |
| Interface | Yes, using LEDs |
| Status | Yes, using LED status indicator |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
Controller
| Backup battery | Yes |
| Voltage monitoring | An NMI is triggered at a supply voltage of <15 VDC. |
| System bus for expansions | No |
| Typical instruction cycle time | 0.8 µs |
| Watchdog | Yes |
| Real-time clock | |
| Accuracy | Resolution 1 s |
| Standard memory | |
| System PROM | 448 kB FlashPROM |
| User PROM | 1024 kB FlashPROM |
| User RAM | 300 kB SRAM |
Display
| Type | Monochrome LCD |
| Resolution | 4 x 20 characters |
| Display character set | English/European |
| Backlight | |
| Type | LED |
Interfaces
| Interface IF1 | |
| Type | RS232 |
| Variant | 9-pin male DSUB connector |
| Electrical isolation | No |
| Max. baud rate | 115.2 kbit/s |
| Interface IF2 | |
| Type | CAN |
| Variant | 9-pin male DSUB connector |
| Electrical isolation | Yes |
| Max. distance | 1000 m |
| Max. transfer rate | |
| Bus length ≤60 m | 500 kbit/s |
| Bus length ≤200 m | 250 kbit/s |
| Bus length ≤1000 m | 50 kbit/s |
Digital inputs
| Quantity | 16 |
| Nominal voltage | 24 VDC |
| Input circuit | Sink or source |
| Input filter | |
| Channel 1-3 | <10 µs |
| Channel 4-16 | <1 ms |
| Input current at nominal voltage | |
| Channel 1-3 | Approx. 10 mA |
| Channel 4-16 | Approx. 5 mA |
| Electrical isolation | |
| Group isolation | No |
| Channel – Bus | Yes |
| Channel – Channel | No |
| Additional functions | |
| Channel 1-3 | Counters |
| Channel 4-16 | – |
Digital outputs
| Quantity | 16 |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.5 A |
| Total nominal current | 8 A |
| Output circuit | Source |
| Output protection | Overload protection, short-circuit protection |
| Internal protective circuit | VDR |
| Electrical isolation | |
| Group isolation | No |
| Channel – Bus | No |
| Channel – Channel | No |
