SKF 2307EKTN9/C3 Ball Bearing
SKF 2307EKTN9/C3 Ball Bearing
Product Description:
- It is a type of rolling-element bearing that uses balls to reduce friction between two moving parts.
- These are one of the most common types of bearings due to their efficiency and durability.
- They come in various sizes and configurations to suit different applications, and they play a critical role in the smooth operation of countless machines and mechanical systems.
- These are the most common type and are used in a wide range of applications.
- They have deep, raceway grooves in both the inner and outer rings, allowing them to support radial and axial loads.

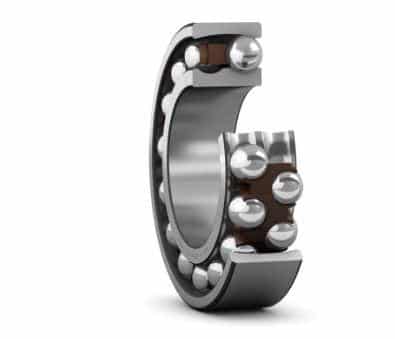

- The SKF 2307EKTN9/C3 Ball Bearing is a high-quality self-aligning ball bearing designed to deliver smooth operation, high load capacity, and long service life in demanding industrial applications.
- Manufactured by SKF, this bearing is engineered to handle radial loads, moderate axial loads, and shaft misalignment, making it ideal for reliable and efficient machinery performance.
- The SKF 2307EKTN9/C3 Ball Bearing features a tapered bore (K) and a C3 internal clearance, allowing it to perform efficiently under high-speed and high-temperature conditions. Its reinforced polyamide cage (TN9) ensures reduced friction, improved lubrication flow, and enhanced durability during continuous operation.
Product Specification:
| Bore diameter | 35Â mm |
| Outside diameter | 80Â mm |
| Width | 31Â mm |
| Basic dynamic load rating | 39.7Â kN |
| Basic static load rating | 11.2Â kN |
| Reference speed | 16 000Â r/min |
| Limiting speed | 12 000Â r/min |
| Retaining feature, inner ring | None |
| Locating feature, bearing outer ring | None |
| Number of rows | 2 |
| Bore type | Tapered 1:12 |
| Cage | Non-metallic |
| Radial internal clearance | C3 |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
