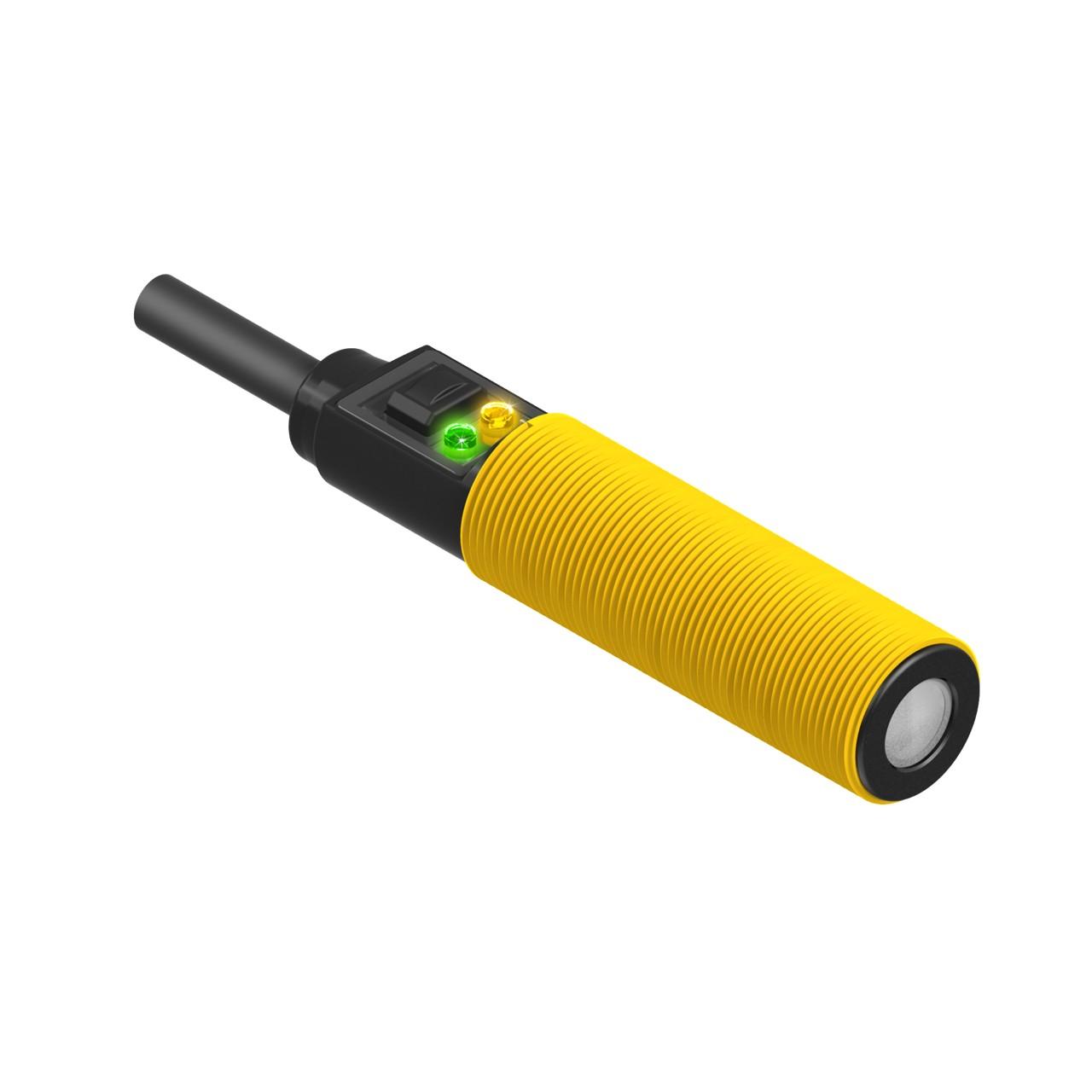

Banner S18UBA Ultrasonic Sensor
Banner S18UBA Ultrasonic Sensor
Product Description:
- An Ultrasonic Sensor is a type of sensor that uses ultrasonic sound waves (typically above 20 kHz, beyond the range of human hearing) to detect objects, measure distance, and perform level monitoring in various applications.
- These sensors are commonly used in industrial, automotive, and consumer electronics for non-contact measurements.
- An ultrasonic sensor is a device that uses ultrasonic waves to detect the distance or presence of objects.
- It operates on the principle of sending out ultrasonic waves and measuring the time it takes for the waves to bounce back after hitting an object.
- Ultrasonic sensors are commonly used in various applications, including industrial automation, robotics, automotive systems, and proximity sensing.
Product Specification:
Power: DC
Sensing Beam: Ultrasonic
PC Configurable: No
Cable Length (m): 9
Sensing Mode (General): Proximity
Sensing Mode (Detailed): Time of Flight
Housing Style: Barrel – Straight
Device Type: Sensor
Primary Housing Material: ABS/Polycarbonate
Input/Output: Discrete
Connection: Flying Leads
Quick Disconnect Type: No QD
Max Sensing Distance (mm): 300
Minimum Sensing Distance (mm): 30
Power Supply: 10-30 V dc
Adjustments: Push Button; Remote Teach
Number of Pins: 5
IP Rating: IP67
NEMA Rating: NEMA 6P
Max Operating Temperature (°C: )60
Min Operating Temperature (°C): -20
Minimum Response Time (ms): 5
Barrel Diameter (mm): M18
Ultrasonic Frequency (kHz): 300
Feature: Remote Teach: Yes
