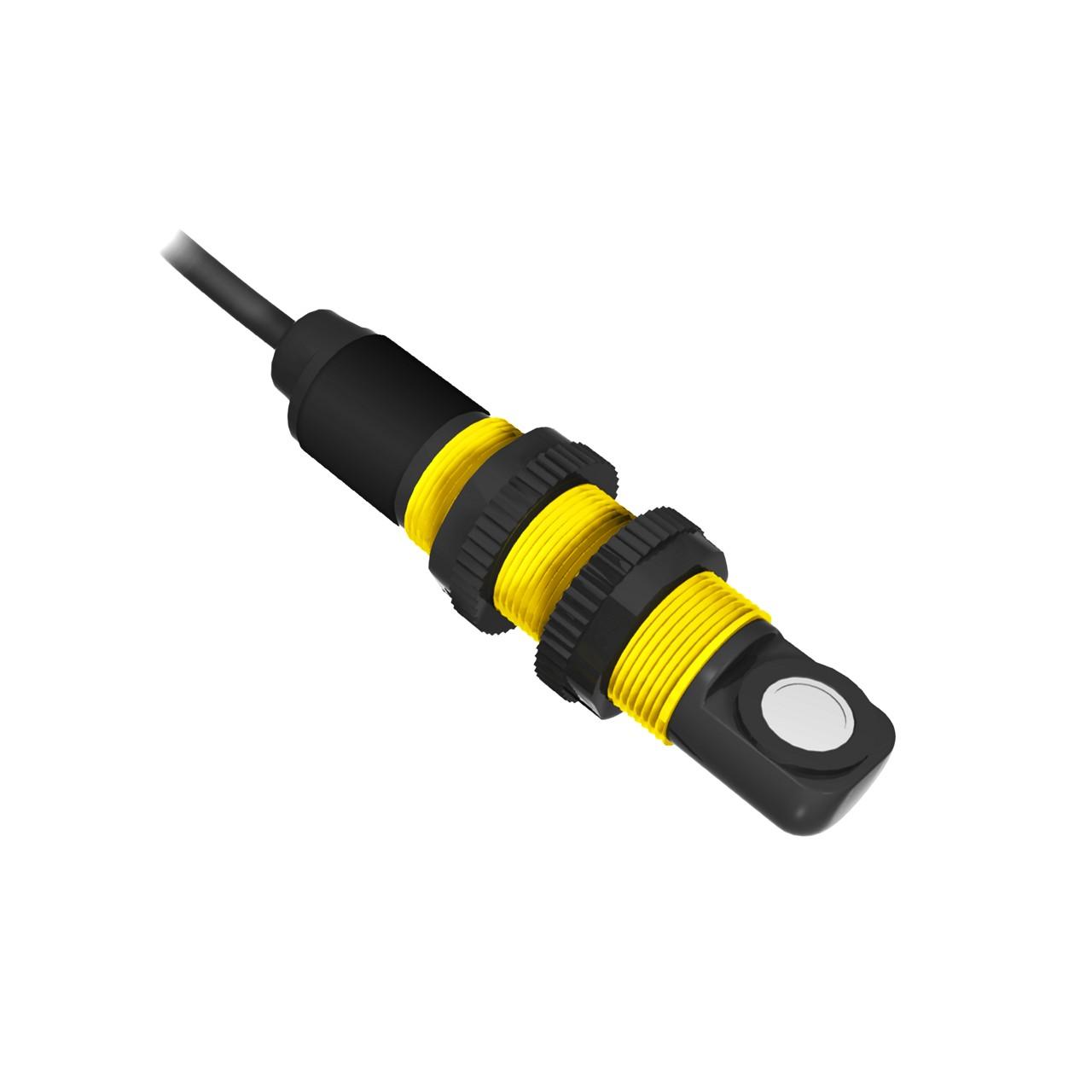

Banner S18UBAR Ultrasonic Sensor
Banner S18UBAR Ultrasonic Sensor
Product Description:
- An Ultrasonic Sensor is a type of sensor that uses ultrasonic sound waves (typically above 20 kHz, beyond the range of human hearing) to detect objects, measure distance, and perform level monitoring in various applications.
- These sensors are commonly used in industrial, automotive, and consumer electronics for non-contact measurements.
- An ultrasonic sensor is a device that uses ultrasonic waves to detect the distance or presence of objects.
- It operates on the principle of sending out ultrasonic waves and measuring the time it takes for the waves to bounce back after hitting an object.
- Ultrasonic sensors are commonly used in various applications, including industrial automation, robotics, automotive systems, and proximity sensing.
- The Banner S18UBAR Ultrasonic Sensor is a high-performance proximity and distance measurement sensor designed for precise object detection in industrial automation, manufacturing, and process control applications. This advanced ultrasonic sensor provides accurate, reliable, and repeatable measurements even in challenging environments such as dust, dirt, or liquids, making it ideal for level detection, object presence sensing, and material handling.
- The Banner S18UBAR Ultrasonic Sensor features compact design, robust construction, and easy integration into existing control systems. With its wide sensing range, high repeatability, and fast response time, this sensor enhances machine efficiency, operational safety, and productivity. It is compatible with PLC systems, automation controllers, and industrial equipment, making it a versatile choice for a variety of applications.
Product Specification:
- Power: DC
- Cable Length (m): 2
- Sensing Beam: Ultrasonic
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Time of Flight
- Housing Style:Barrel :Right Angle
- Device Type: Sensor
- Primary Housing Material: ABS/Polycarbonate
- Input/Output: Discrete
- Connection: Flying Leads
- Quick Disconnect Type: No QD
- Max Sensing Distance (mm): 300
- Minimum Sensing Distance (mm): 30
- Power Supply: 10-30 V dc
- Adjustments: Push Button; Remote Teach
- Number of Pins: 5
- IP Rating: IP67
- NEMA Rating: NEMA 6P
- Max Operating Temperature (°C): 60
- Min Operating Temperature (°C): –20
- Minimum Response Time (ms): 5
- Barrel Thread: M18
- Ultrasonic Frequency (kHz): 300
- Feature: Remote Teach: Yes
- Feature: Clear Object Detection: Yes
- Feature: Timing (Hold/Delay): No
- Feature: Chemical Resistant: No
- Feature: Quick Disconnect: No
- Application: Ultrasonic: Yes
- Discrete S18U Right-Angle Series: Proximity Mode
