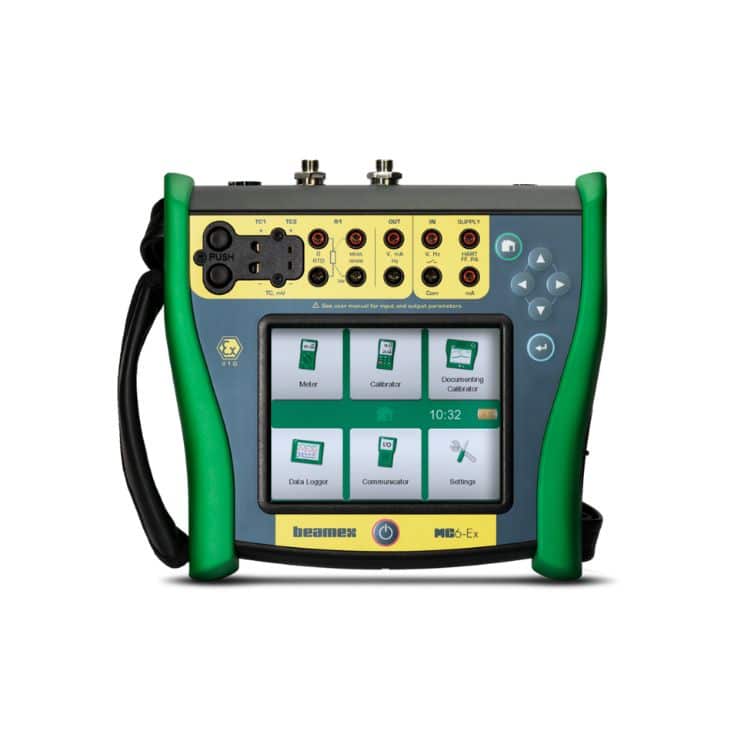

Beamex MC6-Ex Field Calibrator
Beamex MC6-Ex Field Calibrator
Product Description:
- A Field Calibrator is a portable precision instrument designed to test, measure, and calibrate process instruments such as pressure transmitters, temperature sensors, flow devices, and electrical equipment directly at the installation site. It is widely used in industrial automation, process control, oil & gas, power plants, and maintenance applications, where accurate calibration and reliable system performance are essential.
- Field calibrators provide high-accuracy measurement and signal generation, allowing technicians to verify instrument performance, detect errors, and ensure compliance with industry standards. These devices support multiple calibration functions, including pressure, temperature, current, voltage, and frequency measurement, ensuring efficient and reliable field testing.
- The Beamex MC6-Ex Field Calibrator is a precision calibration instrument designed for industrial process measurement and calibration in hazardous environments. Certified for Ex/ATEX zones, the MC6-Ex ensures safe, reliable, and accurate calibration of pressure, temperature, electrical, and loop instruments in industries such as oil & gas, chemical, power generation, and petrochemical.
- This field calibrator combines robust construction, advanced functionality, and intuitive interface, providing technicians and engineers with fast and accurate calibration on-site. With the Beamex MC6-Ex, you can perform loop checks, pressure calibration, thermocouple and RTD calibration, and multimeter measurements safely in explosive atmospheres. Its rugged, portable design allows for use in extreme conditions, while delivering high-precision measurement, reliable data logging, and seamless integration with calibration management software.
Product Specification:
| Display | 5.7” Diagonal 640 x 480 TFT LCD Module |
| Touch Panel | 5-wire resistive touch screen |
| Keyboard | Membrane keyboard |
| Backlight | LED backlight, adjustable brightness |
| Weight | 2.5…2.9 kg (5.5…6.4 lb) |
| Dimensions | 207 mm x 231 mm x 80 mm (D x W x H) |
| Battery Pack type | Rechargeable NiMh, 4200 mAh, 9.6 V |
| Charging time | 10 hours from 0 to 100% at 0…30 °C (32…86 °F) |
| Charger supply | 100…240 VAC, 50–60 Hz |
| Battery operation | 4…8 h (Heavy / Normal usage) |
| Operating temperature | –10…50 °C |
| Operating temperature while charging batteries | 0…40 °C |
| Storage temperature | –20…60 °C |
| Specifications valid | –10…50 °C, unless other mentioned |
| Humidity | 0 to 80% R.H. non condensing |
| Warmup time | Specifications valid after a 5 minute warmup period |
| Max. input voltage | 30 V AC, 30 V DC |
| Ex Safety | ATEX directive 2014/34/EU |
| Ex marking | II 1 G, Ex ia IIC T4 Ga, Ta = –10 °C…+50 °C |
| Ex marking (North America): | Class I, Zone 0, AEx ia IIC T4 Ga | Class I, Division 1, Groups A-D, T4 | Tamb –10 °C to +50 °C, Intrinsically Safe, Sécurité intrinsèque |
| ATEX Certification | EN IEC 60079-0:2018 | EN 60079-11:2012 | Certificate No. EESF 18 ATEX 071X |
| IECEx Certification | IEC 60079-0:2017, Edition:7.0, IEC 60079-11:2011, Edition:6.0, Certificate No. IECEx EESF 18.0033X |
| North American Certification (SGS) | UL 913, 8th Ed. Rev. December 6, 2019 | UL 60079-0 7th Ed. Rev. April 15, 2020 | CAN/CSA C22.2 No. 60079-0:19 | UL 60079-11, 6th Ed. 02/15/2013 | CAN/CSA C22.2 No. 60079-11:14 | Certificate No SGSNA/18/SUW/00222X |
| RoHS Compliance | RoHS Directive 2011/65/EU as amended by (EU) 2015/863, EN IEC 63000:2018 |
| Safety | Directive 2014/35/EU, EN 61010-1:2010 + A1:2019 + AC:2019-04 |
| EMC | Directive 2014/30/EU, EN IEC 61326-1:2021 |
| Ingress protection | IP 65, IEC/EN 60529 |
| Drop test | 1 meter drop test |
| Max Altitude | 3000 m (9842 ft) |
