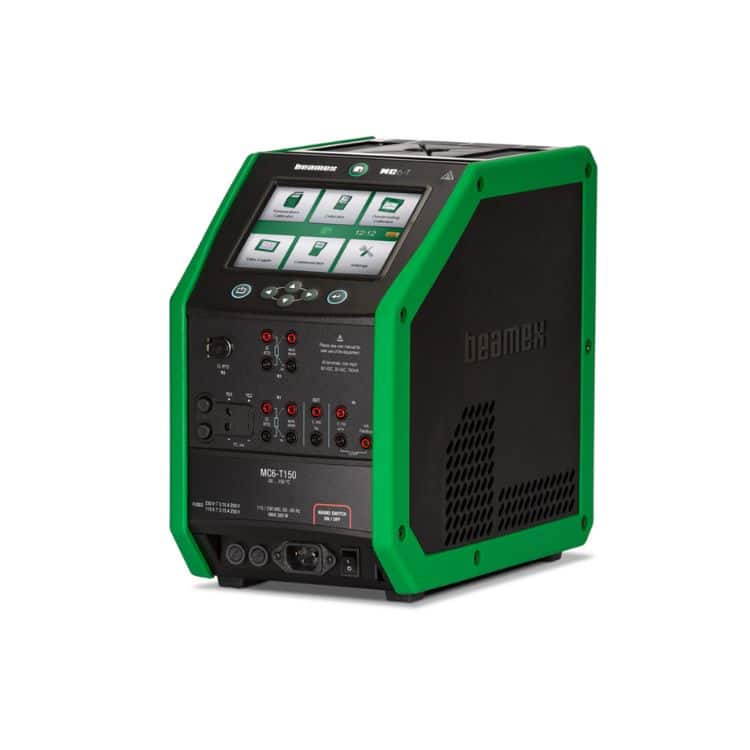

Beamex MC6-T Temperature Calibrator
Beamex MC6-T Temperature Calibrator
Product Description:
- A Temperature Calibrator is a precision testing instrument designed to measure, simulate, and calibrate temperature sensors and controllers in the field or laboratory. It is widely used in industrial automation, process control, HVAC systems, oil & gas, chemical plants, and power generation, where accurate temperature measurement and reliable calibration are critical for system performance and safety.
- Temperature calibrators provide high-accuracy reference temperatures to verify the performance of devices such as thermocouples, RTDs, and temperature transmitters. They allow operators to adjust, test, and maintain instruments for precise temperature monitoring, ensuring process reliability and compliance with industry standards.
- The Beamex MC6-T Temperature Calibrator is a high-precision temperature calibration device designed for accurate measurement, simulation, and verification of temperature sensors and instruments. Ideal for industrial, laboratory, and field calibration applications, the MC6-T ensures reliable temperature calibration, accurate readings, and improved process control.
- With its robust construction and user-friendly interface, the Beamex MC6-T Temperature Calibrator supports thermocouples, RTDs, and other temperature sensors, providing fast, precise, and repeatable calibration. This device helps technicians maintain instrument accuracy, compliance with quality standards, and operational efficiency across industrial plants, process control systems, and manufacturing environments.
Product Specification:
| Dimensions | 322 mm x 180 mm x 298 mm (12,68″ x 7,09″ x 11,73″) |
| Weight | MC6-T150: 9.4 kg (20.7 lbs) MC6-T660: 8.6 kg (18.96 lbs) |
| Display | 5.7” Diagonal 640 x 480 TFT LCD Module |
| Touch Panel | 5-wire resistive touch screen |
| Keyboard | Membrane keyboard |
| Backlight | LED backlight, adjustable brightness |
| Power requirements | 230 V ±10%, 50/60 Hz, 380 W (MC6-T150, 1560 W (MC6-T660) 115 V ±10%, 50/60 Hz, 380 W (MC6-T150), 1560 W (MC6-T660) |
| Fuse size (MC6-T660) | 230 V: T 8A 250V / 115 V: T 16A 250V |
| Fuse size (MC6-T150) | 230 V: T 3.15A 250V / 115 V: T 3.15A 250V |
| Max. input voltage | 30 V AC, 60 V DC |
| Operating temperature | 0 … 45 °C (32 … 113 °F) |
| Operating humidity | 0 … 90% R.H. non condensing |
| Storage temperature | -20 … 60 °C (-4 … 140 °F) |
| Computer interface | USB |
| Calibration certificate | Accredited calibration certificate |
| Warmup time | Specifications valid after a 5 minute warmup period |
| Battery type | Rechargeable lithium-ion polymer, 4300 mAh, 11.1 V |
| Charging time | Approximately 4 hours |
| Battery operation time | 10 … 16 hours |
| Battery operated functions | All functions except temperature control and R3 measurement |
| Safety | Directive 2014/35/EU, EN 61010-1:2010 + A1:2019 + AC:2019-04 |
| EMC | Directive 2014/30/EU, EN IEC 61326-1:2021 |
| RoHS compliance | RoHS II Directive 2011/65/EU, EN IEC 63000:2018 |
| Drop | EN 61010-1:2013 |
