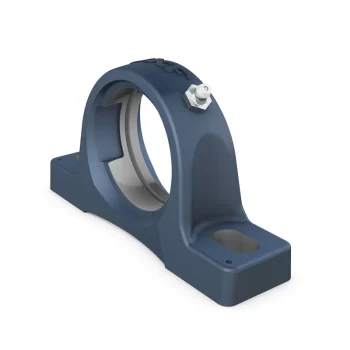

SKF SY510M Bearing Housing
SKF SY510M Bearing Housing
- Â The primary purpose of a bearing housing is to provide a mounting platform for the bearing and protect it from contaminants, moisture, and other environmental factors. Bearing housings have a flat or contoured surface where the bearing is installed. This surface typically includes holes or slots for fasteners (such as bolts or set screws) to secure the bearing in place.
Product Specification:
| Centre distance between bolt holes | 157Â mm |
| Centre height (pillow block) | 57.2Â mm |
| Housing overall width | 54Â mm |
| Spherical seating diameter | 90Â mm |
| Coating | Without |
| Fastening bolt hole type | Plain |
| Housing type | Pillow block |
| Material, housing | Cast iron |
| Number of bolt holes for fasteners | 2 |
| Relubrication hole | With |
| Relubrication nipple | With |
