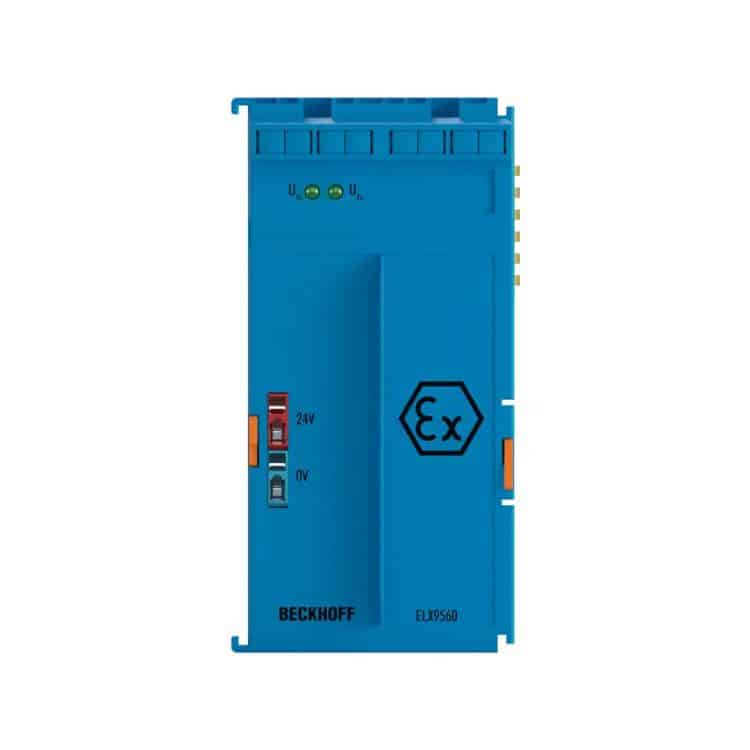

Beckhoff ELX9560 Power Supply
Beckhoff ELX9560 Power Supply
Product Description:
- A Power Supply is a critical electrical component designed to convert, regulate, and deliver stable electrical energy to electronic devices, industrial equipment, and automation systems. It ensures consistent voltage and current output, protecting sensitive electronics and machinery from fluctuations, surges, and power interruptions.
- Manufactured with high-quality materials and advanced circuitry, power supplies provide efficient energy conversion, thermal protection, and long-term reliability.
- They are widely used in industrial automation, control panels, instrumentation, communication systems, and laboratory equipment, offering safe and dependable power for continuous operations.
- The Beckhoff ELX9560 Power Supply is a high-performance industrial power module designed to provide reliable and stable DC voltage for automation systems, control panels, and industrial machinery. Engineered by Beckhoff, this power supply ensures efficient energy conversion, high operational reliability, and long service life in demanding industrial environments.
- With advanced overload, overvoltage, and short-circuit protection, the Beckhoff ELX9560 Power Supply safeguards sensitive automation equipment and enhances system stability.
- It delivers consistent power output for PLC systems, I/O modules, and distributed control systems, making it an ideal solution for industrial automation applications.
Product Specification:
| Technology | terminal supply |
| Input voltage | 24Â V DC (-15%/+20%) |
| Output voltage | 24 V DC EX |
| Max. output current | 0.65 A (from hardware level 01) |
| Current consumption E-bus | typ. 40 mA |
| Special features | electrically isolated output voltage, reverse polarity protection, diagnostic of supply and output voltage |
| Weight | approx. 200 g |
| Housing width | 48 mm |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus, CCC |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
