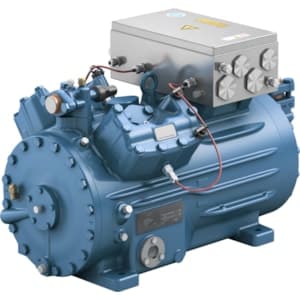

Bock EX-HGX44E-475-4 Semi Hermetic Compressor
Bock EX-HGX44E-475-4 Semi Hermetic Compressor
Product Description :
- A semi-hermetic compressor is a type of compressor commonly use in refrigeration and air conditioning systems. Semi-hermetic compressors have a sealing arrangement that allows access to the motor-compressor unit without exposing the internal components to the external environment. Semi-hermetic compressors are widely use in various applications, including commercial and industrial refrigeration, air conditioning systems, and heat pumps.
Product Specification:
| Anti-vibration pads | No |
| Applications | MBP HBP |
| Approval standard | No |
| Brand | BOCK |
| Capacity regulator | No |
| Colour | Blue – standard (conductive coating) |
| Compressor power supply [V] | 380-420V Y/YY -3- 50Hz PW |
| Cylinder | 4 |
| Description | Compressor EX-HGX44e/475-4 S |
| Discharge connection size [in] | 1 1/8 in |
| Discharge connection size [mm] | 28 mm |
| Discharge connection size type | Standard |
| Discharge connection type | Soldering |
| Family | HG ATEX Compressors |
| Frequency Hz | 50 |
| In scope of WEEE | No |
| In scope of WEEE and contain batteries | No |
| Intermediate flange/adapter | No |
| IP class | IP 66 |
| Legacy BOCK ID | 17732 |
| Length (mm) | 693 |
| Max pressure (PS) – high side | 28 bar |
