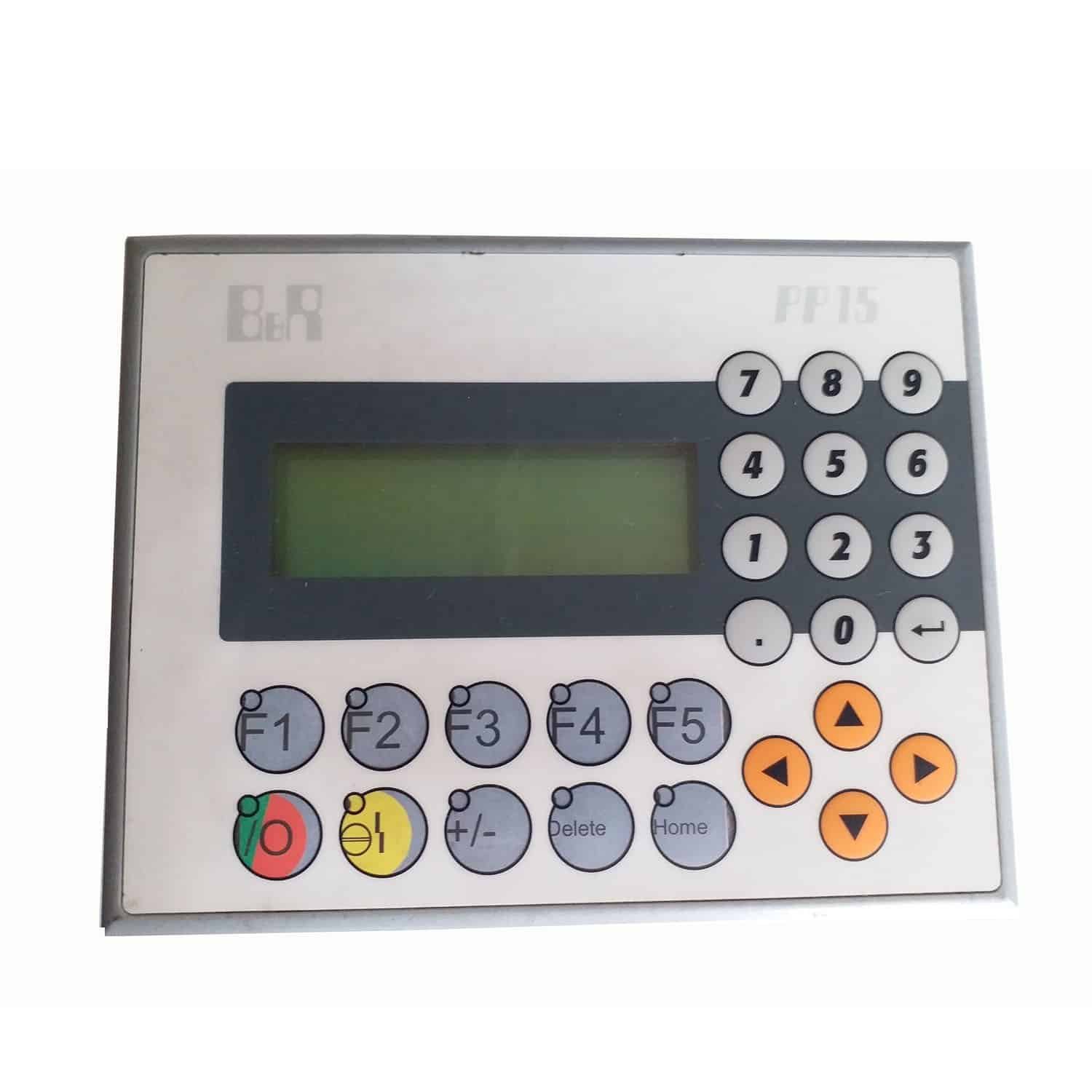

B&R 4PP015E42001 Power Panel
B&R 4PP015E42001 Power Panel
Product Description :
- It refers to an electrical distribution panel or a control panel that manages and distributes electrical power within a building, facility, or industrial setting.
- The primary function of a power panel is to distribute electrical power from a main source (such as a utility line or a generator) to various circuits and electrical loads throughout a building or facility.
- They include circuit breakers or fuses that protect electrical circuits from overloads and short circuits, thereby ensuring safety and preventing damage to electrical equipment.
- It is integral for managing electrical power distribution, ensuring safety, and supporting efficient operations across various applications and environments.
Product Specification :
General information
| Battery |
|
| Type |
Renata 950 mAh |
| Variant |
Lithium ion |
| Status indicators |
|
| Other |
I/O function per channel, status |
| Diagnostics |
|
| I/O function |
Yes, using LEDs |
| Interface |
Yes, using LEDs |
| Status |
Yes, using LED status indicator |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| UL |
cULus E115267
Industrial control equipment |
Controller
| Backup battery |
Yes |
| Voltage monitoring |
An NMI is triggered at a supply voltage of <15 VDC. |
| System bus for expansions |
No |
| Typical instruction cycle time |
0.8 µs |
| Watchdog |
Yes |
| Real-time clock |
|
| Accuracy |
Resolution 1 s |
| Standard memory |
|
| System PROM |
448 kB FlashPROM |
| User PROM |
1024 kB FlashPROM |
| User RAM |
300 kB SRAM |
Display
| Type |
Monochrome LCD |
| Resolution |
4 x 20 characters |
| Display character set |
English/European |
| Backlight |
|
| Type |
LED |
Interfaces
| Interface IF1 |
|
| Type |
RS232 |
| Variant |
9-pin male DSUB connector |
| Electrical isolation |
No |
| Max. baud rate |
115.2 kbit/s |
| Interface IF2 |
|
| Type |
CAN |
| Variant |
9-pin male DSUB connector |
| Electrical isolation |
Yes |
| Max. distance |
1000 m |
| Max. transfer rate |
|
| Bus length ≤60 m |
500 kbit/s |
| Bus length ≤200 m |
250 kbit/s |
| Bus length ≤1000 m |
50 kbit/s |
Digital inputs
| Quantity |
16 |
| Nominal voltage |
24 VDC |
| Input circuit |
Sink or source |
| Input filter |
|
| Channel 1-3 |
<10 µs |
| Channel 4-16 |
<1 ms |
| Input current at nominal voltage |
|
| Channel 1-3 |
Approx. 10 mA |
| Channel 4-16 |
Approx. 5 mA |
| Electrical isolation |
|
| Group isolation |
No |
| Channel – Bus |
Yes |
| Channel – Channel |
No |
| Additional functions |
|
| Channel 1-3 |
Counters |
| Channel 4-16 |
– |
Digital outputs
| Quantity |
16 |
| Nominal voltage |
24 VDC |
| Nominal output current |
0.5 A |
| Total nominal current |
8 A |
| Output circuit |
Source |
| Output protection |
Overload protection, short-circuit protection |
| Internal protective circuit |
VDR |
| Electrical isolation |
|
| Group isolation |
No |
| Channel – Bus |
No |
| Channel – Channel |
No |
