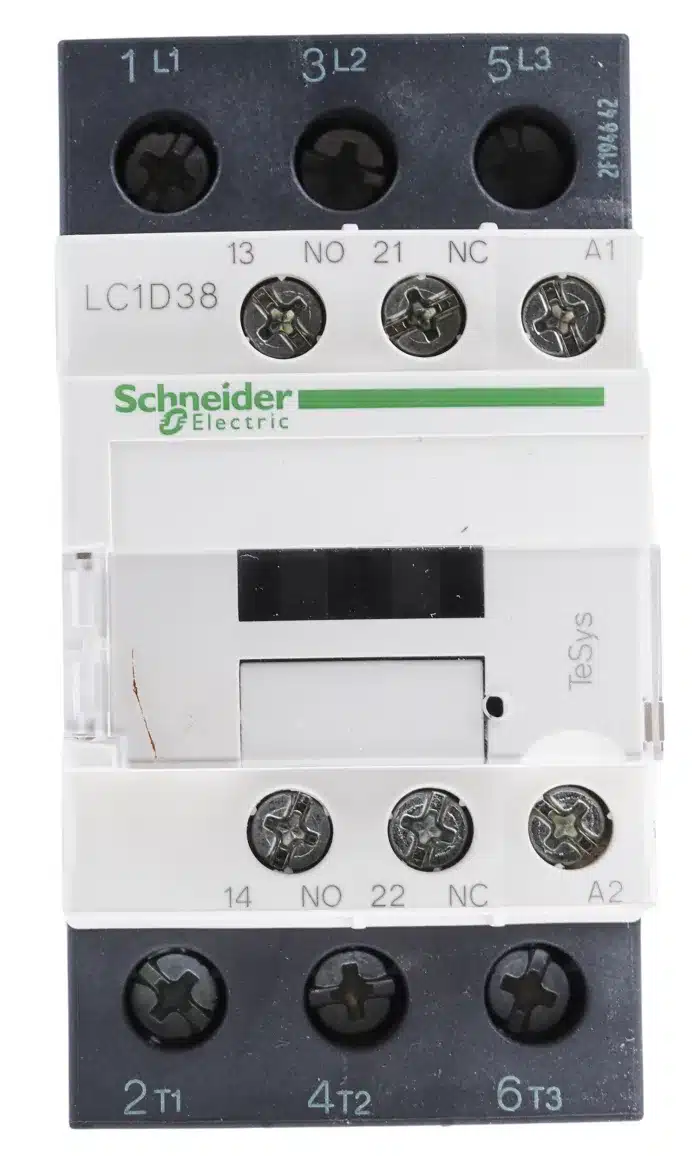

Schneider Electric LC1D38M7 Contactor
Schneider Electric LC1D38M7 Contactor
- Contactors have a set of electrical contacts that close or open the circuit. Common uses include motor control, lighting control, HVAC systems, and industrial machinery. Contactors are commonly use in industrial and commercial applications where there is a need to switch large electrical loads.
Product Specification :
| IP degree of protection | IP20 front face conforming to IEC 60529 |
|---|---|
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Pollution degree | 3 |
| Permissible ambient air temperature around the device | -40…60 °C 60…70 °C with derating |
| Operating altitude | 0…3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Compatibility code | LC1D |
| Contact compatibility | M2 |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 92 mm |
| Net weight | 0.38 kg |
