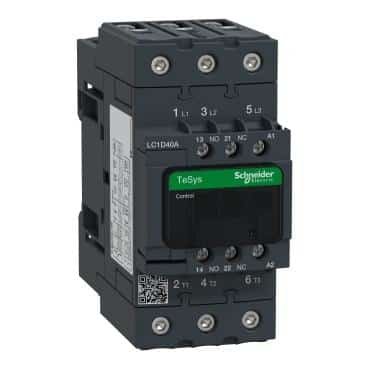

Schneider Electric LC1D40AB7 Contactor
Schneider Electric LC1D40AB7 Contactor
- It is an electrical device use to control the flow of electricity in an electrical circuit. Contactors are commonly use in industrial and commercial applications where there is a need to switch large electrical loads. Contactors have a set of electrical contacts that close or open the circuit. These contacts are typically made of high-quality materials to ensure they can handle the high current and voltage levels associated with the controlled load.
Product Specification:
| Overvoltage category | III |
|---|---|
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 6 Mcycles |
| Electrical durability | 1.4 Mcycles 60 A AC-1 at Ue <= 440 V 1.5 Mcycles 40 A AC-3 at Ue <= 440 V 1.5 Mcycles 40 A AC-3e at Ue <= 440 V |
| Control circuit type | AC at 50/60 Hz standard |
