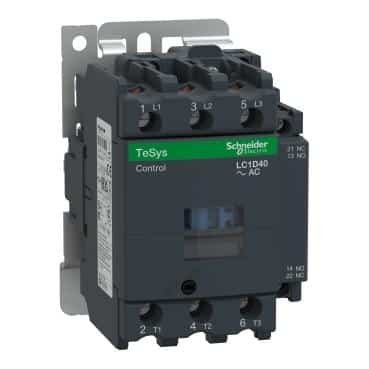

Schneider Electric LC1D40B7 Contactor
Schneider Electric LC1D40B7 Contactor
- It is an electrical device use to control the flow of electricity in an electrical circuit. Contactors are commonly use in industrial and commercial applications where there is a need to switch large electrical loads. Contactors have a set of electrical contacts that close or open the circuit. These contacts are typically made of high-quality materials to ensure they can handle the high current and voltage levels associated with the controlled load.
Product Specification:
| Auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| Auxiliary contacts type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Mounting support | Rail Plate |
