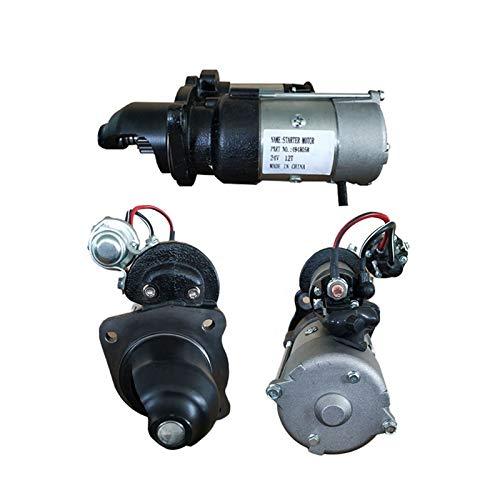

Cummins 4948058 Starter Motor
Cummins 4948058 Starter Motor
Product Description:
- A starter motor is an electric motor used to start an internal combustion engine.
- It is responsible for turning the engine over (cranking) to initiate the combustion process, which is needed for the engine to begin running on its own.
- Once the engine starts, the starter motor disengages and is no longer needed until the next time the engine is started.
- It is a crucial component in a vehicle’s engine system.
- It is responsible for initiating the engine’s combustion process by turning the engine’s flywheel
- The starter motor turns the engine’s flywheel initiating the combustion process in the engine.
- It also converts electrical energy from the battery into mechanical energy to crank the engine.
- Engages with the engine when starting and disengages once the engine is running.
- Check the starter motor and associated wiring periodically for signs of wear or damage.
Product Specification:
- Part Number:Â 4948058,5266525,ST9695
- Voltage : 24
- Model/Type : M93R3001SE
- Diametral Pitch : 10/12
- Mounting SAE : SAE #1-3
- Bolt 90 Degrees
- Wet/Dry : Dry
- Starter Style : Reduction
- Pilot Bore Diameter (mm) : 88.90
- Mounting Flange Thickness(mm) : 11.5
- Kilowatt Rating : 6
- Starter Pinion Tooth Blank : 12
- Starter Body Diameter (mm) : 93
- Supply Method : Mounted
- Exposed Starter Length (mm) : 226 Maximun
- Cummins Nameplate : No
- Pinion Position-Rest (mm) : 47.5 +/- 1
- Pinion Position-Engaged(mm) : 64
