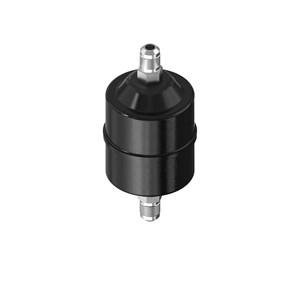

Danfoss 023Z500991 Hermetic Filter Drier
Danfoss 023Z500991 Hermetic Filter Drier
Product Description:
- They are specialized type of filter drier used in refrigeration and air conditioning systems, typically found in hermetic systems where the compressor and the rest of the system are sealed in a single, enclosed unit.
- They plays a critical role in maintaining the integrity and efficiency of the system by filtering contaminants and removing moisture from the refrigerant.
- It is a specific type of filter drier designed for use in hermetically sealed refrigeration systems.
- It refer to the sealed and airtight nature of the compressor and motor in refrigeration and air conditioning systems.
- It plays a crucial role in these systems by filtering out contaminants and removing moisture from the refrigerant.
- Danfoss 023Z500991 Hermetic Filter Drier is a high-performance refrigeration component designed to protect your HVAC and refrigeration systems from moisture, acids, and contaminants. This Danfoss hermetic filter drier ensures reliable operation by maintaining clean refrigerant flow, reducing the risk of system corrosion, and extending equipment lifespan.
- Ideal for both industrial and commercial refrigeration applications, the 023Z500991 Danfoss filter drier features robust construction, easy installation, and superior moisture-absorbing capability. Choose this genuine Danfoss hermetic filter drier for efficient, long-lasting protection of your refrigeration system.
Product Specification:
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Shell volume [foz US] | 11.97 oz |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Specification key | DCL 164 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 164 |
| UL approval file name | SA6398 |
| Acid capacity [g] | 3.11 g |
| Acid capacity [oz] | 0.11 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 443 R290: — R32: 373 R404A: 461 R407C: 430 R410A: 401 R507: 483 |
| Drying Cap[Drops of Water]52°C | R134a: 405 R290: — R32: 343 R404A: 437 R407C: 396 R410A: 356 R507: 434 |
| Flow capacity [kW] | R134a: 26.6 R290: — R32: 40.5 R404A: 18.7 R407C: 27.2 R410A: 27.7 R507: 18.1 |
| Flow capacity [TR] | R134a: 7.6 R290: — R32: 11.5 R404A: 5.3 R407C: 7.7 R410A: 7.9 R507: 5.2 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection size [mm] | 12 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 7.63 oz |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection size [mm] | 12 mm |
| Outlet connection type | FLARE |
