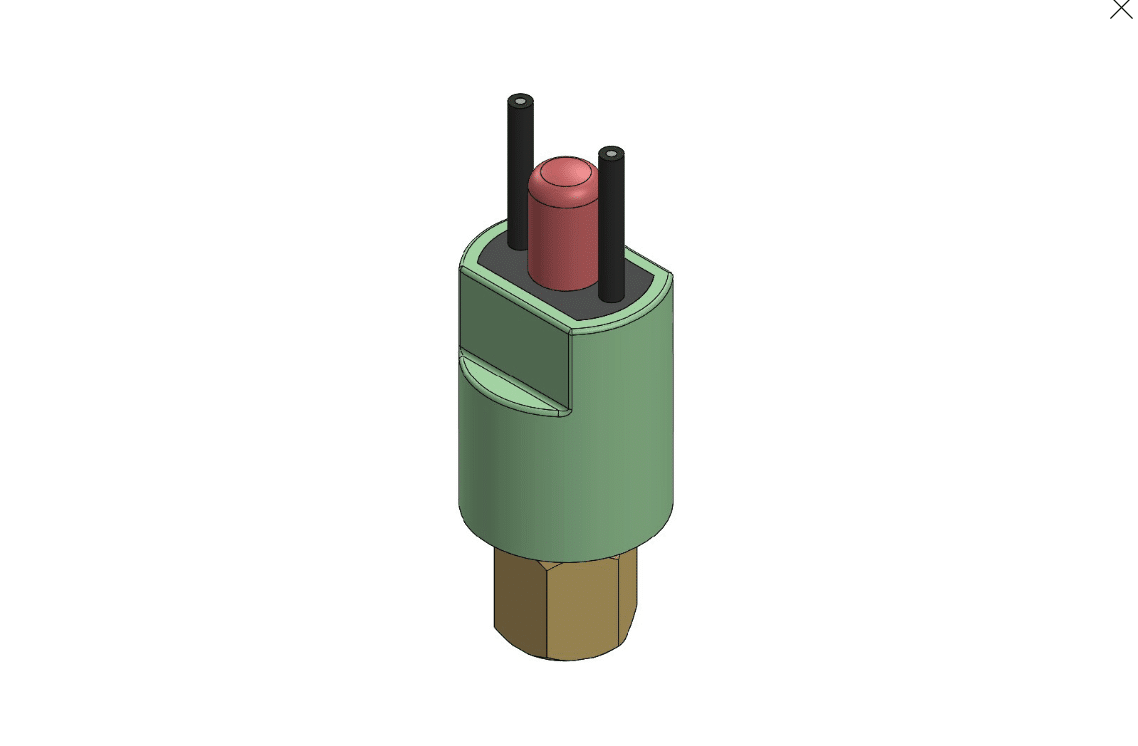

Danfoss 061F9602 Cartridge Pressure Switch
Danfoss 061F9602 Cartridge Pressure Switch
Product Description :
- It is a type of pressure switch that typically uses a cartridge-like structure to encase the pressure-sensing mechanism and electrical components. They are commonly use in hydraulic systems, pneumatic systems, and other industrial applications where pressure control is critical.
-
A cartridge pressure switch is a compact and reliable device designed to monitor and control fluid or gas pressure within hydraulic, pneumatic, or industrial systems. It activates or deactivates electrical circuits when the system pressure reaches a preset value, ensuring operational safety and efficiency.
-
Cartridge pressure switches are manufactured from high-quality metals and durable sealing materials, providing excellent resistance to pressure fluctuations, vibration, and harsh environmental conditions. They are available in various pressure ranges, electrical ratings, and mounting configurations to suit diverse applications.
Product Specification:
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | C UL US UL873 CE 0035 TÜV UKCA |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| Cable length [in] | 3.94 in |
| Cable length [m] | 0.1 m |
| Cable type | AWG18 |
| CE evaluated | Yes |
| China RoHS compliance | Yes exceed limitations |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A, 250 V |
| Electrical connection | Cable |
