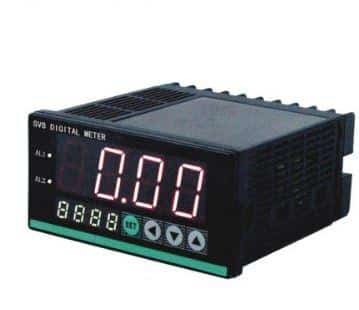

Digital Panel Meter SV8-DC10W
Input TC, RTD, 4-20mA, 0-50mV, 0-10V, 0-400Ω, Output 4-20mA and 2 x Relay Alarm, 100–240V AC/DC
Main Features
|
| Power Supply |
100~240V AC/DC |
| Accuracy |
±0.5% FS ±3digits |
| Input |
TC / RTD / 4~20mA / 0~50mV / 0~10V / 0~400Ω |
| Output |
4~20mA and 2 x Relay Alarm |
| Auxiliary Output |
24VDC 30mA max |
| Ambient Temperature |
0~50°C |
| Ambient Humidity |
<85% RH |
Technical Specification:
| Dimensions |
96×48 |
| Mounting Size |
91x45mm |
| Power Supply |
100 – 240V AC/DC |
| Display |
2×4 digits |
| Input |
TC, RTD, 4-20mA, 0-50mV, 0-10V, 0-400Ω |
| Output |
4-20mA, 2 x Relay Alarm |
