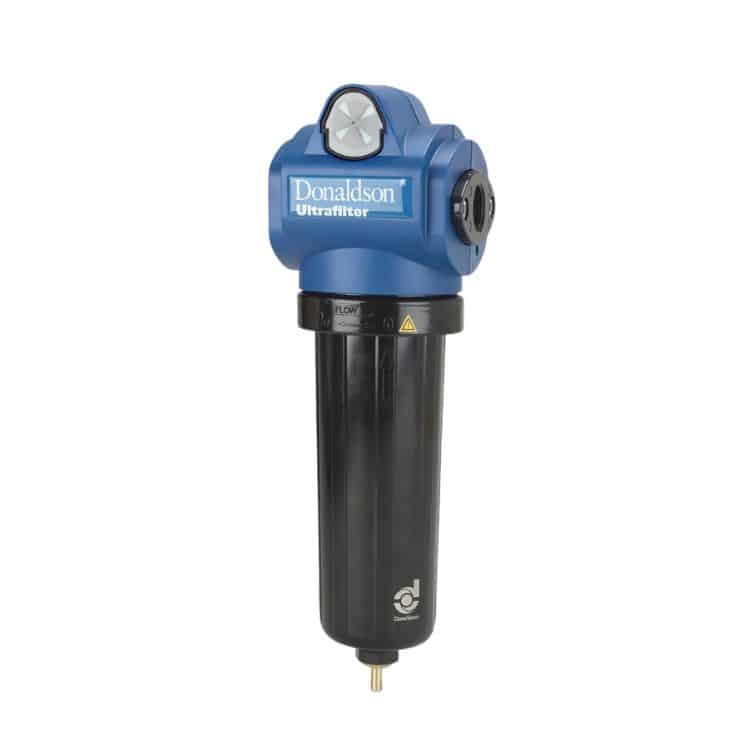

Donaldson 1C484300-24 Filter Housing
Donaldson 1C484300-24 Filter Housing
Product Description :
- It is an essential component of a filtration system, designed to encase and support the filter element(s) while allowing fluid (air, water, oil, or other liquids) to pass through and be filtered. The housing provides structural integrity to the filter and ensures that contaminants are captured by the filter element, preventing them from passing through into the system.
- The housing holds the filter element securely and protects it from physical damage, chemical exposure, and other external factors.
-
A Filter Housing is a protective enclosure designed to hold and secure filter elements used for removing contaminants from liquids, gases, or compressed air systems. It provides a sealed environment that ensures efficient filtration, safe operation, and easy maintenance.
-
Filter housings are commonly made from stainless steel, carbon steel, aluminum, or durable plastics, offering strength, corrosion resistance, and suitability for a wide range of applications. They are used in industrial machinery, compressors, water treatment systems, hydraulic circuits, chemical processing, and HVAC equipment to maintain clean fluids and protect sensitive components.
Product Specification :
| Connection Type | G 1/2 |
| Flow Rate Nominal (Air) | 120 m³/h |
| Differential Pressure Gauge | Econometer |
| Drain Type | KA 1/2 |
| Maximum Operating Pressure | 16 bar (232 psi) |
| Maximum Operating Temperature | 65 °C (149 °F) |
| Minimum Operating Temperature | 1 °C (34 °F) |
| Filter Housing Material | Aluminum |
| Housing Gasket Material | Perbunan |
| Length | 107 mm (4.21 inch) |
| Width | 103 mm (4.06 inch) |
| Height | 340 mm (13.39 inch) |
