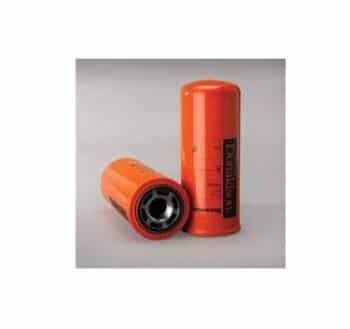

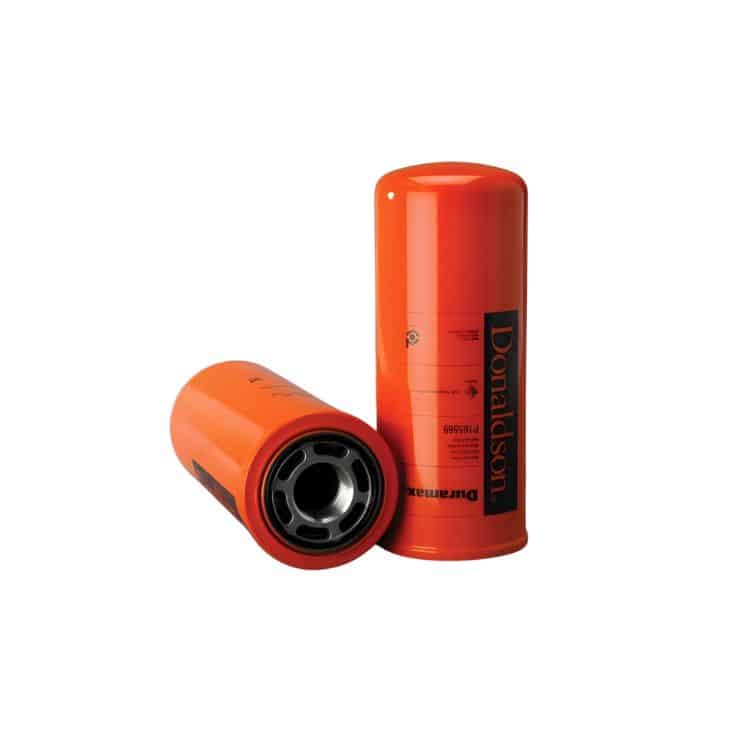

Donaldson P165569 Hydraulic Spin-On Filter
Donaldson P165569 Hydraulic Spin-On Filter
Product Description:
- It is a type of filter used in hydraulic systems to remove contaminants and particles from hydraulic fluid.
- It is a type of hydraulic filter designed for easy installation and replacement.
- These filters are commonly used in hydraulic systems to remove contaminants from hydraulic fluid, ensuring the system operates efficiently and components are protected from wear and damage.
- These filters are common in various hydraulic systems, including those found in construction equipment, agricultural machinery, industrial machinery, and hydraulic power units.
Product Specification:
| Outer Diameter | 121 mm (4.76 inch) |
| Thread Size | 1 3/4-12 UN |
| Length | 295.4 mm (11.63 inch) |
| Gasket OD | 86 mm (3.39 inch) |
| Gasket ID | 79 mm (3.11 inch) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 200 | 18 micron |
| Efficiency Beta 1000 | 23 micron |
| Style | Spin-On |
| Series | HMK05/25 |
