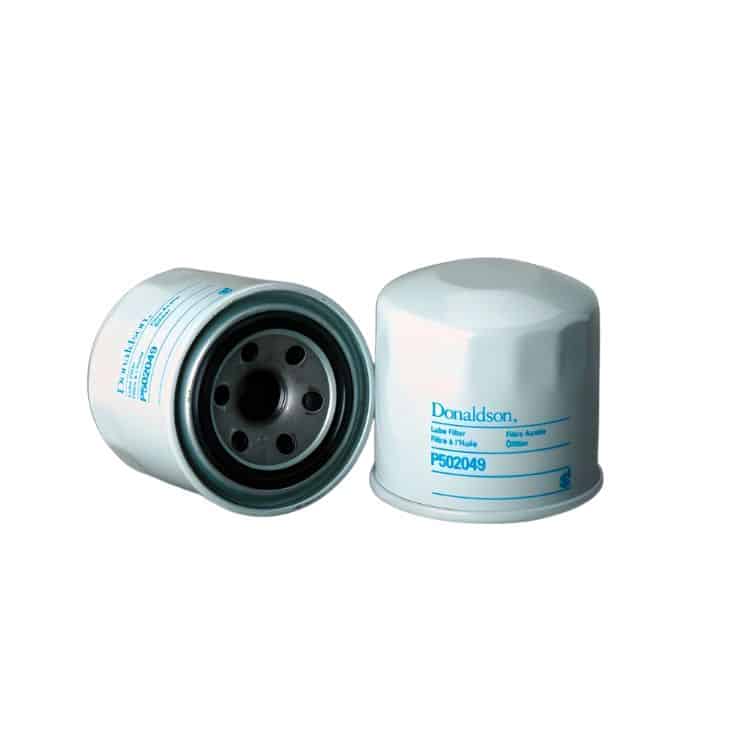

Donaldson P502049 Lube Filter
Donaldson P502049 Lube Filter
Product Description:
- A lube filter (short for lubrication filter) is a key component in the lubrication system of an engine or mechanical system.
- Its primary function is to filter out impurities and contaminants from the engine oil (or other lubricating fluids) before they can circulate through the engine’s moving parts.
- This helps ensure that the engine remains lubricated with clean oil, preventing wear and prolonging the life of the engine.
- It is a device use to filter and clean lubricating oil or lubricant in various machinery and equipment.
- The primary function of a lube filter is to remove contaminants, particles, debris, and impurities from the lubricating oil.
- This ensures that the oil remains clean and capable of providing effective lubrication and protection to the machinery.
- It is a critical component for maintaining the integrity and effectiveness of lubricants, which is essential for the proper operation and longevity of engines, hydraulic systems, and other mechanical equipment.
Product Specification:
| Outer Diameter | 80 mm (3.15 inch) |
| Thread Size | M20 x 1.5 |
| Length | 80 mm (3.15 inch) |
| Gasket OD | 63 mm (2.48 inch) |
| Gasket ID | 51 mm (2.01 inch) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.76 bar (11 psi) |
| Bypass Valve Setting HR | 1.17 bar (17 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
