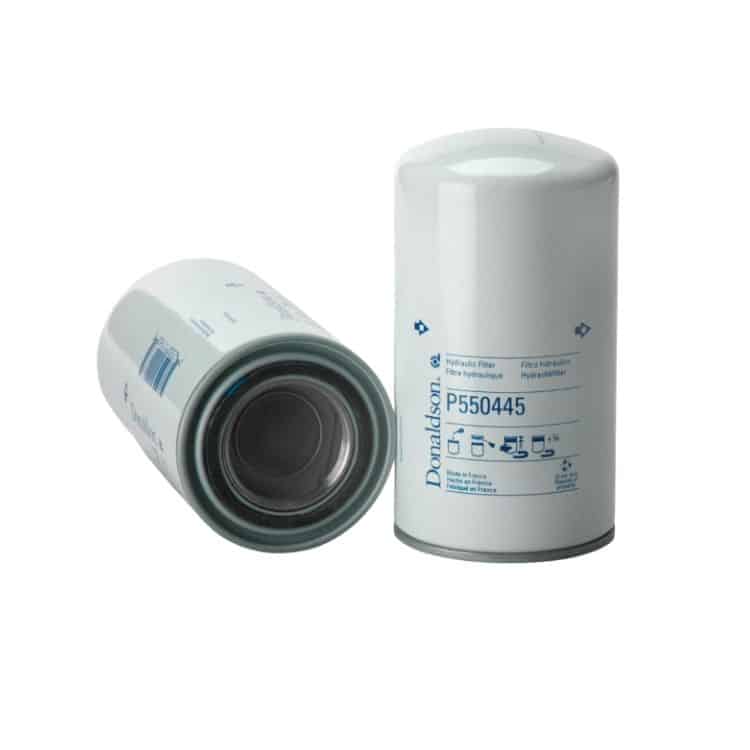

Donaldson P550445 Hydraulic Filter
Donaldson P550445 Hydraulic Filter
Product Description :
- It is a component use in hydraulic systems to remove contaminants from the fluid.
- They typically feature a filter medium, such as paper, wire mesh, or synthetic materials, which effectively capture and retain particles while allowing the fluid to pass through.
- They operate under high pressure making it crucial to maintain clean fluid for optimal performance.
- Regular inspection and maintenance of hydraulic filters are essential to ensure proper filtration and optimal performance of hydraulic systems.
- Depending on operating conditions and manufacturer recommendations, hydraulic filters may need to be replaced or cleaned periodically to maintain efficient filtration and prevent system damage.
Outer Diameter | 93.5 mm (3.68 inch) |
Thread Size | 2-16 UN |
Length | 173 mm (6.81 inch) |
Gasket OD | 70 mm (2.76 inch) |
Gasket ID | 62 mm (2.44 inch) |
Efficiency Beta 2 | 6 micron |
Bypass Valve | Yes |
Bypass Valve Setting LR | 2.6 bar (38 psi) |
