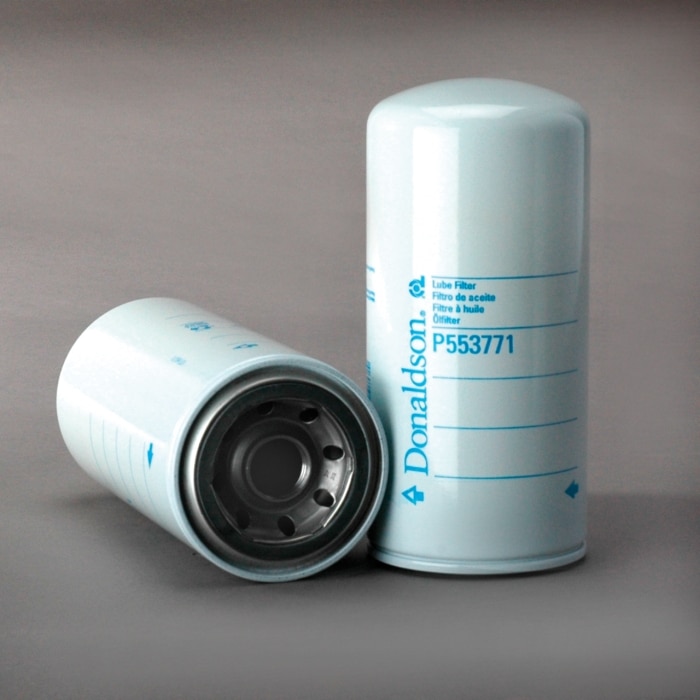

Donaldson P553771 Spin-on Lube Filter
Donaldson P553771 Spin-on Lube Filter
Product Description :
- It is a type of oil filter designed for easy installation and replacement in engines. It features a cylindrical canister that can be “spun on” to the engine block, making it user-friendly for maintenance.
- The filter has a threaded base that allows it to screw directly onto the engine, providing a tight seal without the need for complex fittings.
- Inside the canister, a filtering element traps contaminants, dirt, and debris from the engine oil.The filter typically contains a pleated paper or synthetic material that captures contaminants like dirt, metal particles, and sludge from the engine oil.
Product Specification :
| Outer Diameter | 93 mm (3.66 inch) |
| Thread Size | 1-12 UN |
| Length | 200 mm (7.87 inch) |
| Gasket OD | 71 mm (2.80 inch) |
| Gasket ID | 61 mm (2.40 inch) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | ISO 4548-12 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2 bar (29 psi) |
| Bypass Valve Setting HR | 2.5 bar (36 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
