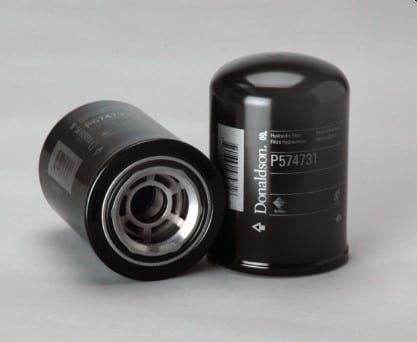

Donaldson P574731 Transmission Filter
Donaldson P574731 Transmission Filter
Product Description:
- A transmission filter is a crucial component in the transmission system of vehicles and machinery, designed to remove contaminants from the transmission fluid.
- By filtering out dirt, debris, and metal particles, the transmission filter helps maintain smooth shifting, prolongs the lifespan of the transmission, and ensures the overall efficiency of the system.
- It is an essential component in an automatic transmission system that helps to remove contaminants and debris from the transmission fluid.
- It plays a crucial role in maintaining the cleanliness and efficiency of the transmission by preventing particles from circulating through the system and causing damage to internal components.
Product Specification:
| Outer Diameter | 97.03 mm (3.82 inch) |
| Thread Size | 2-16 UN |
| Length | 138.78 mm (5.46 inch) |
| Gasket OD | 70.15 mm (2.76 inch) |
| Gasket ID | 63.1 mm (2.48 inch) |
| Efficiency Beta 1000 | 23 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.5 bar (22 psi) |
| Media Type | Synthetic |
| Style | Spin-On |
