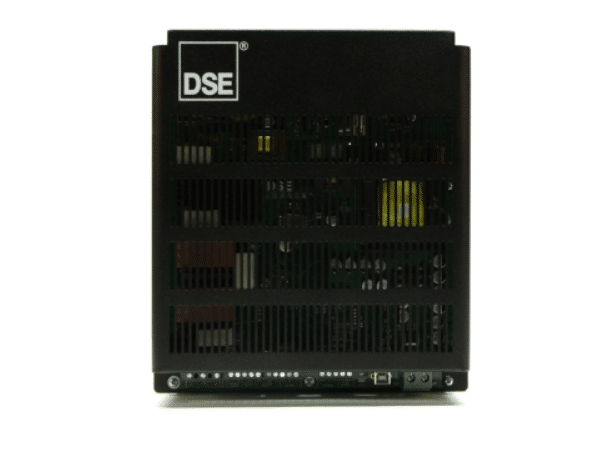

DSE DSE9474 Intelligent Battery Charger
DSE DSE9474 Intelligent Battery Charger
Product Description :
- It enabled switch-mode battery charger that can be programmed for different charging curves. This helps to maximize battery life. The charger is programmed using the Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.
- An Intelligent Battery Charger is an advanced charging solution designed to automatically monitor and adjust the charging process for various battery types.
- Utilizing microprocessor-controlled technology, it ensures optimal charging performance, extends battery life, and provides multiple safety protections. Ideal for automotive, marine, industrial, and backup power applications.
Product Specification :
- VOLTAGE RANGE- 90 V to 305 V (L-N)
- FREQUENCY RANGE- 48 Hz to 64 Hz (L-N)
- DC OUTPUT- 30 A DC 24 V DC
- OVERALL SIZE- 240 mm x 263 mm x 89 mm (9.4” x 10.4” x 3.5”)
