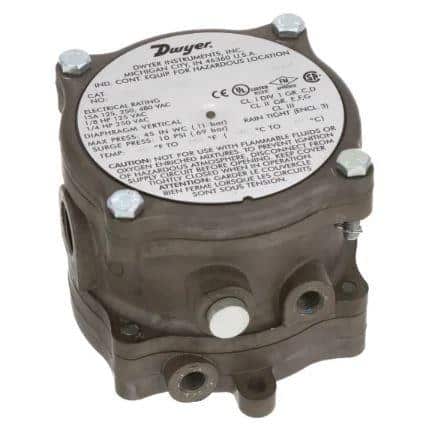

Dwyer 1950-10-2F Pressure Switch
Dwyer 1950-10-2F Pressure Switch
- A pressure switch is a mechanical device use to control or monitor the pressure of a fluid within a system. It operates by sensing changes in pressure and, based on those changes, either opens or closes an electrical circuit to initiate a specific action.
Product Specification:
Approvals: CE ; CSA ; FM ; UL
Connection Type: 1NO ; 1NC
Electrical Rating: 15 A @ 125, 250, 480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz.
Enclosure Rating: Explosion proof; Class I. Groups C and D; Class II, Groups E, F and G; Class III / ATEX
Enclosure Type: Explosion proof; Class I. Groups C and D; Class II, Groups E, F and G; Class III / ATEX
For Use With: Air and non-combustible, compatible gases
IP Rating: IP54
Mounting Orientation: Vertical
NEMA Rating: NEMA 3 ; NEMA 7 ; NEMA 9
Operating Fluid: Air ; Non-Combustible Gases
Port Size: 1/8″ NPT
Mounting Orientation: Vertical
Operating Fluid: Air ; Non-Combustible Gases
Port Size: 1/8″ NPT
Primary Type: Pressure Switch
Series: 1950 series
Set Point: Screw type on top of housing
Switch Type: SPDT
Temperature Range: -40 to 140 F
