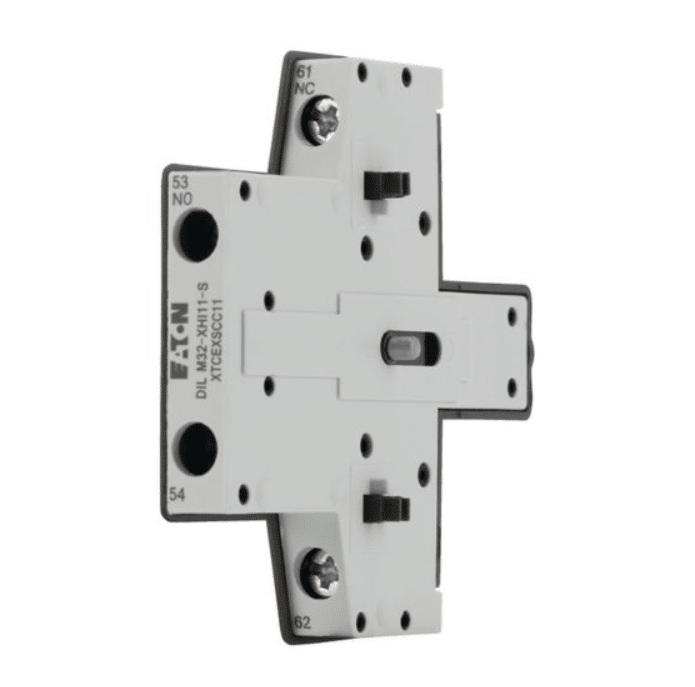

Eaton DILM32-XHI11-S Auxiliary Contact Module
Eaton DILM32-XHI11-S Auxiliary Contact Module
Product Description :
- It is an accessory used in electrical systems to expand the functionality of circuit breakers, contactors, or relays. It adds additional contact points that can be used for various control and signaling purposes.
- Provides extra normally open (NO) or normally closed (NC) contacts to enhance circuit control. Often designed to be easily attached or integrated with existing devices, allowing for straightforward upgrades.
- Allows for more complex control circuits without needing to replace the main device. Modular design helps keep electrical panels organized by consolidating functionality.
-
An auxiliary contact module is an electrical accessory used in conjunction with contactors, relays, or motor starters to provide additional contacts for signaling, interlocking, or control circuit functions. It enhances system flexibility, monitoring, and operational safety.
-
Auxiliary contact modules are manufactured from high-quality, durable plastics and metals, ensuring reliable electrical performance, resistance to heat and wear, and long service life. They are available in normally open (NO), normally closed (NC), or combined configurations to meet specific application requirements.
Product Specification :
- Connection- Screw terminals
- Degree of protection- IP20
- Lifespan, electrical- 1,300,000 Operations (at 230 V, AC-15, 3 A)
- Model- Top mounting
- Mounting method- Side mounting
- Overvoltage category- III
- Pollution degree-3
- Protection-Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
- Rated impulse withstand voltage (Uimp)-6000 V AC/6000 V
- Type-Side-mounting auxiliary contacts
