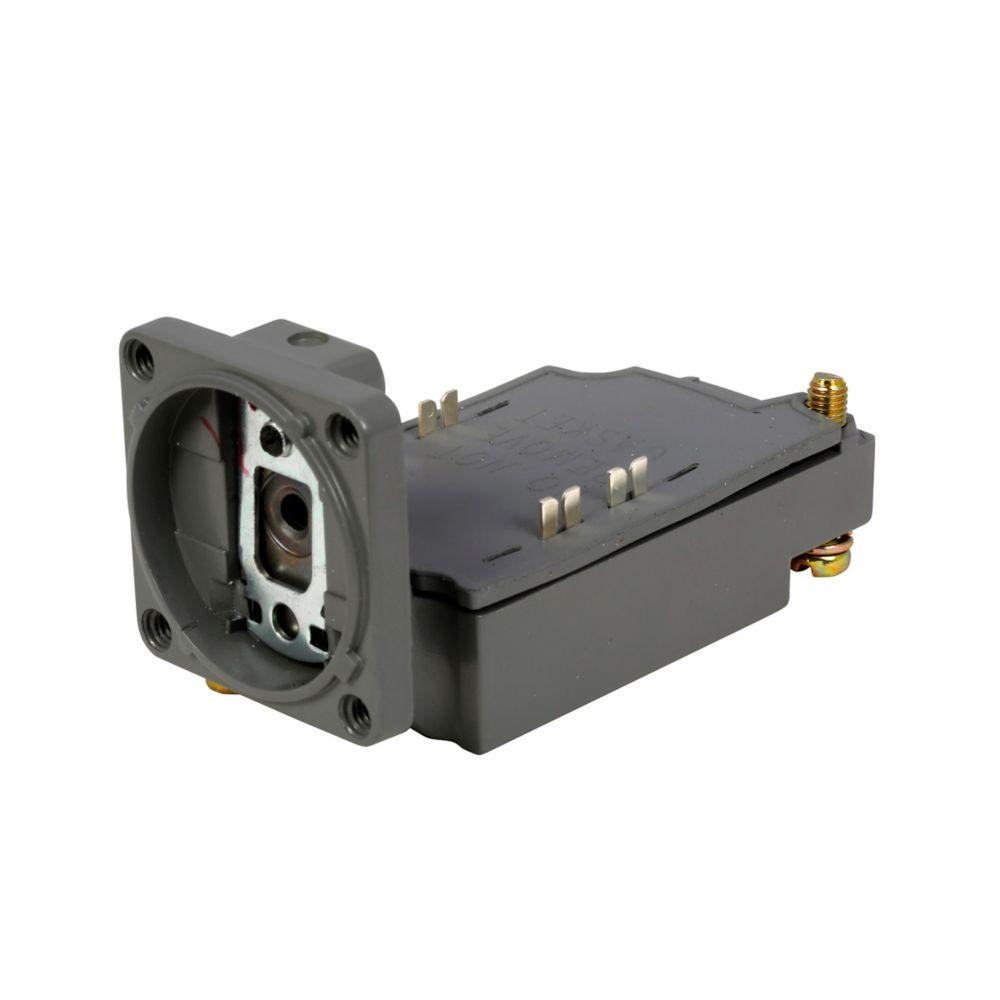

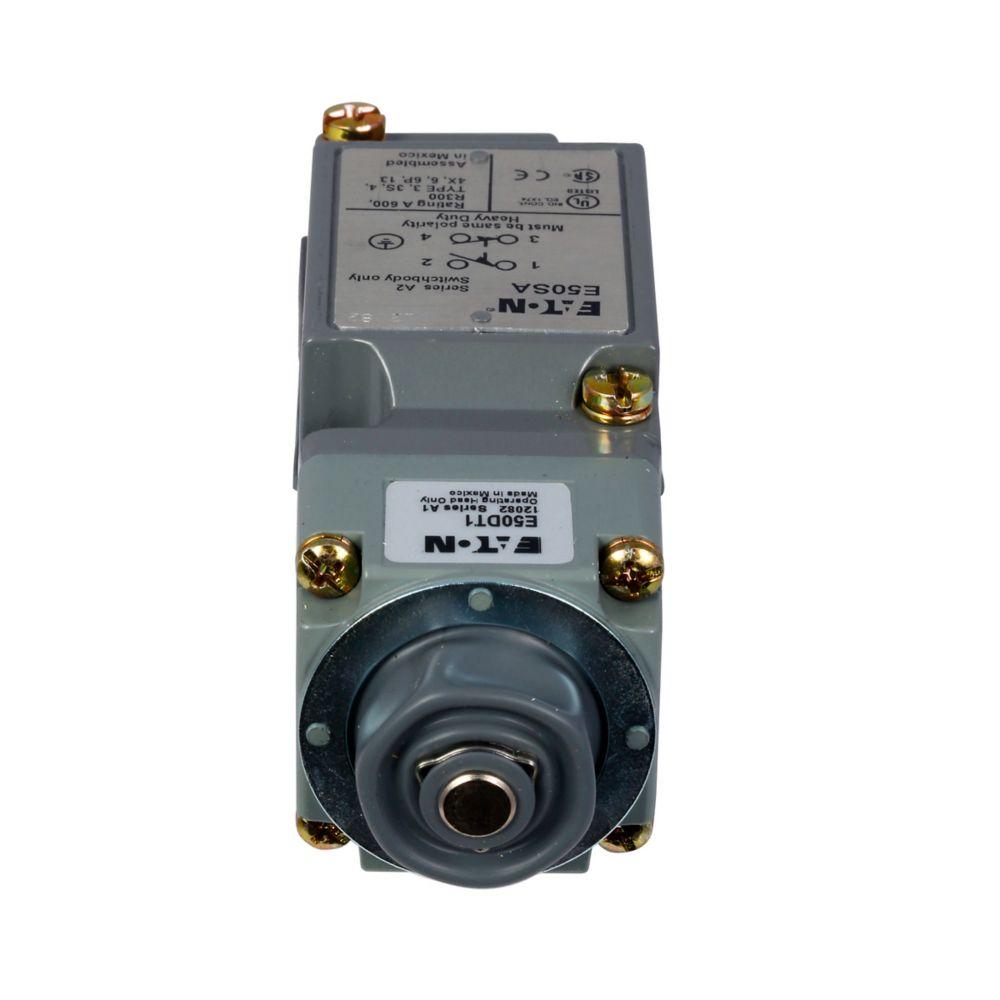

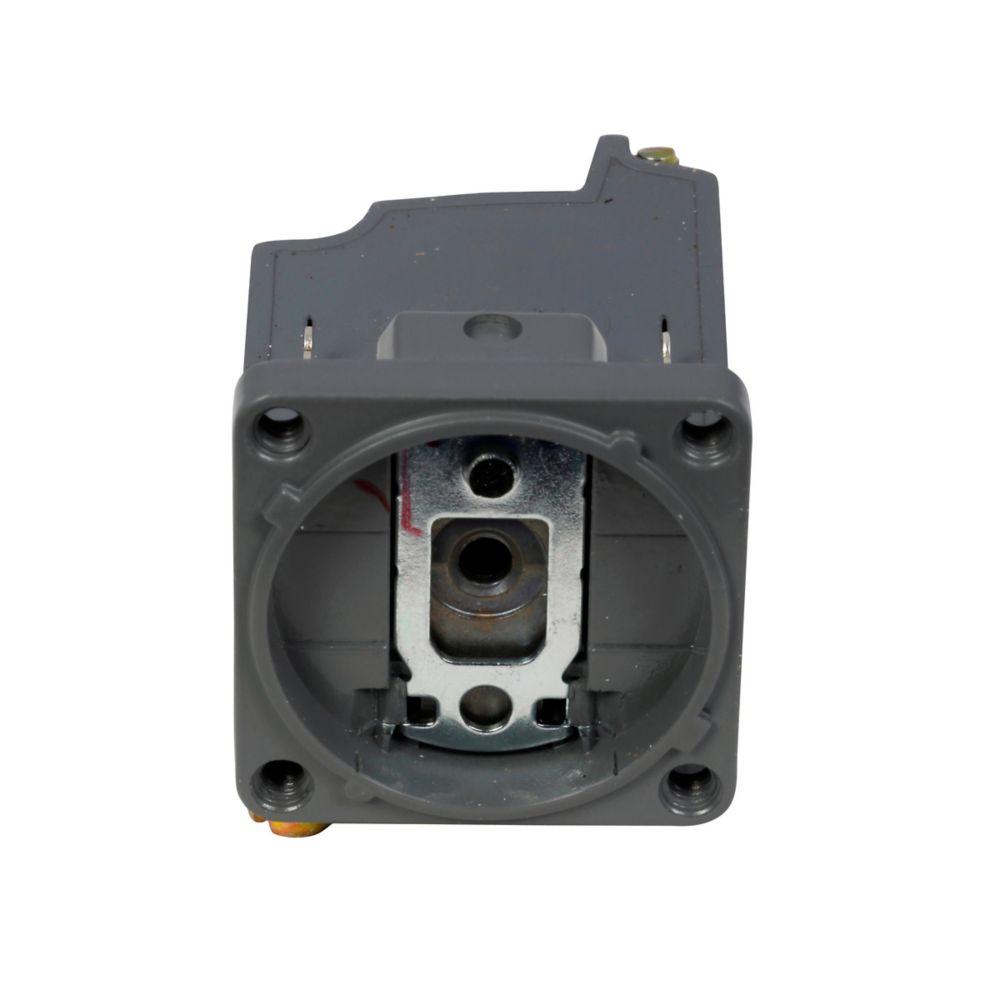

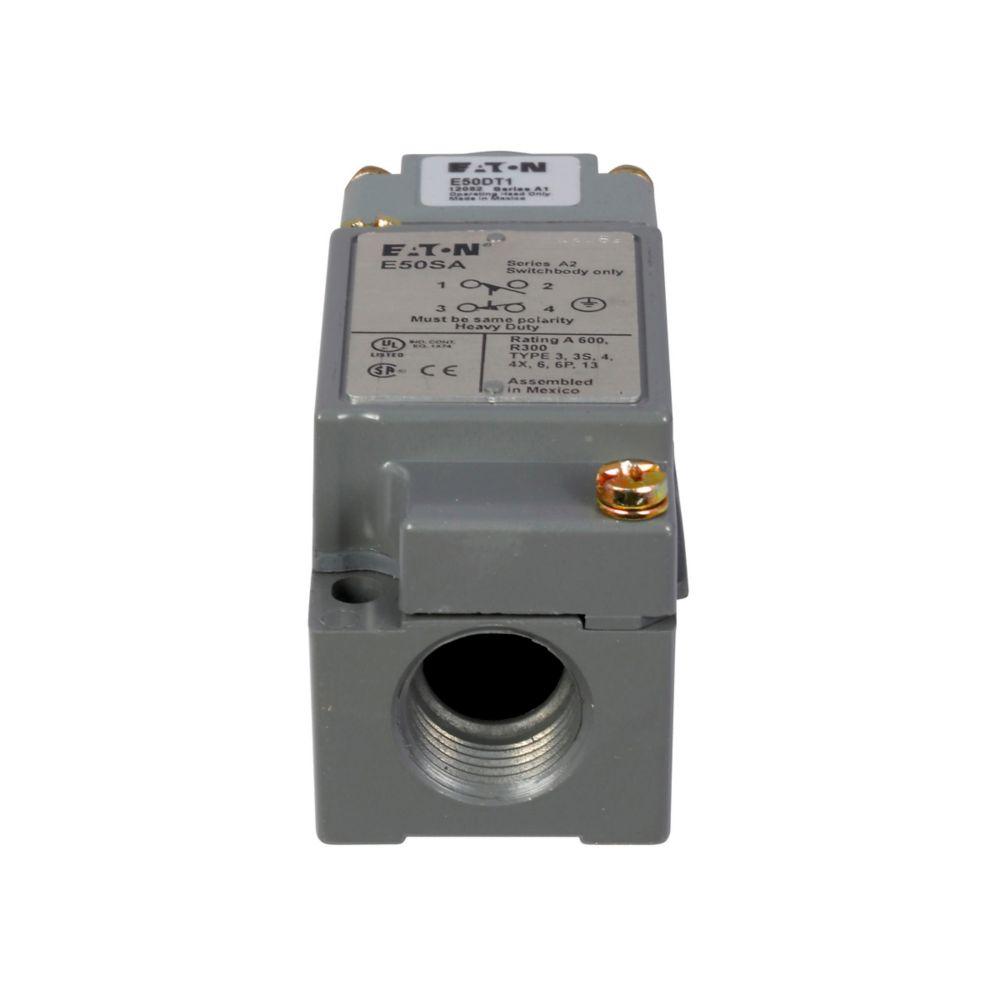

Eaton E50SA Limit Switch
Eaton E50SA Limit Switch
Product Description:
- A limit switch is an electromechanical device that is use to detect the presence or absence of an object within a specified range and to provide electrical signals based on the position of that object.
- Limit switches are commonly used in industrial applications to control machinery, monitor the position of mechanical components, and ensure the safe and efficient operation of various processes.
- The Eaton E50SA Limit Switch is a high-performance industrial switch designed for reliable position detection and precise mechanical control in automated systems.
- Engineered to meet stringent industrial standards, the Eaton E50SA Limit Switch ensures accurate signaling, robust operation, and long-lasting durability in a wide range of applications, including conveyor systems, industrial machinery, and process automation.
- This Eaton E50SA Limit Switch features a rugged housing, corrosion-resistant materials, and a versatile actuator design that allows precise actuation under harsh conditions.
- It is ideal for mechanical motion detection, safety interlocking, and process control, providing reliable feedback to ensure efficient and safe operation of industrial equipment.
Product Specification:
- PRODUCT NAME : Eaton E50 NEMA heavy duty plug-in limit switch
- CATALOG NUMBER : E50SA
- PRODUCT LENGTH/DEPTH : 4.5 in
- PRODUCT HEIGHT : 1.75 in
- PRODUCT WIDTH : 3.25 in
- ENCLOSURE MATERIAL : Die cast zinc
- CONTACT CONFIGURATION : 1 NO-1 NC
- SERIES : E50 heavy duty plug in
- CONTACT RATING : 10A at 12 Vac, 1A at 125 Vdc
- OPERATING TEMPERATURE – MIN : -40 °F
- MAXIMUM AC CURRENT : 10 A
- MAXIMUM DC CURRENT : 1 A
- OPERATING TEMPERATURE – MAX : 250 °F
- NUMBER OF POLES : Single-pole
